Tritan 3G-OTH-108466 — Technical Specifications

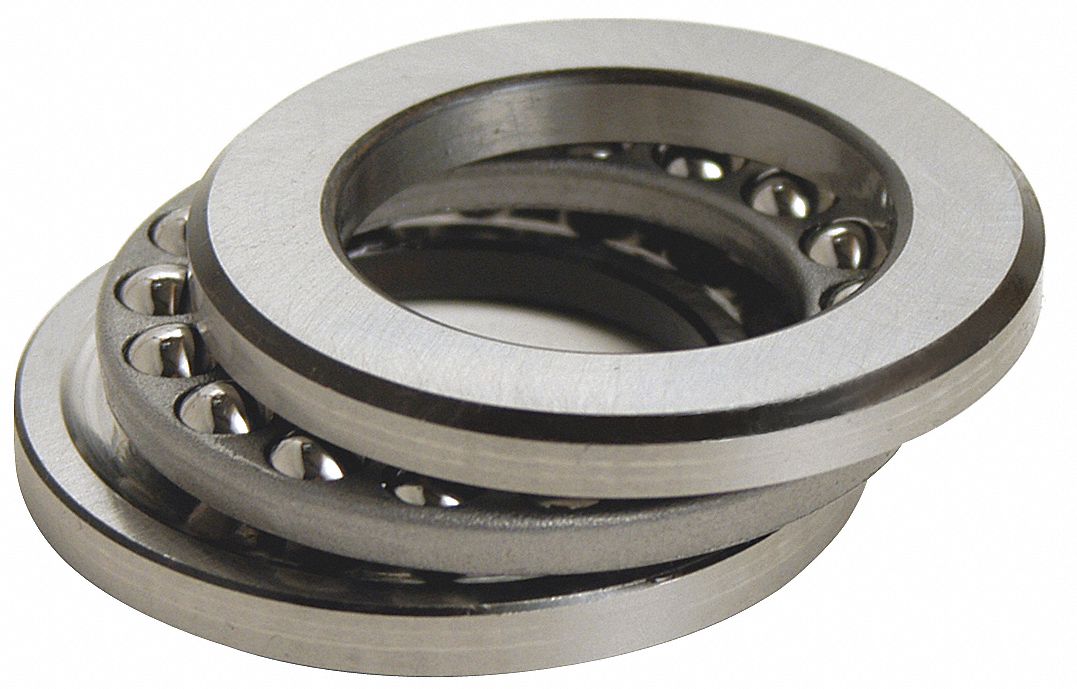

The TRITAN W1/4 is an inch-system separable grooved-race ball thrust bearing from the W Series, featuring a 1/4-inch bore diameter, 13/16-inch outside diameter, and 0.375-inch overall width. It is constructed with AISI 52100 steel balls and has a maximum speed of 12,000 RPM with grease lubrication.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Steel |
| Brand | TRITAN |
| Bore Dia | 1/4 in |
| Overall Wd | 0.375 in |
| Outside Dia | 13/16 in |
| Maximum Speed | 12,000 RPM Grease |
| Bearing Series | W Series |
| Ball Material Grade | AISI 52100 |
| Thrust Bearing Type | Separable Ball Thrust Bearing |
| System Of Measurement | Inch |
| Bearing Industry Number | W1/4 |
| Manufacturer Part Number | W1/4 |
