Tritan 3G-OTH-108951 — Technical Specifications

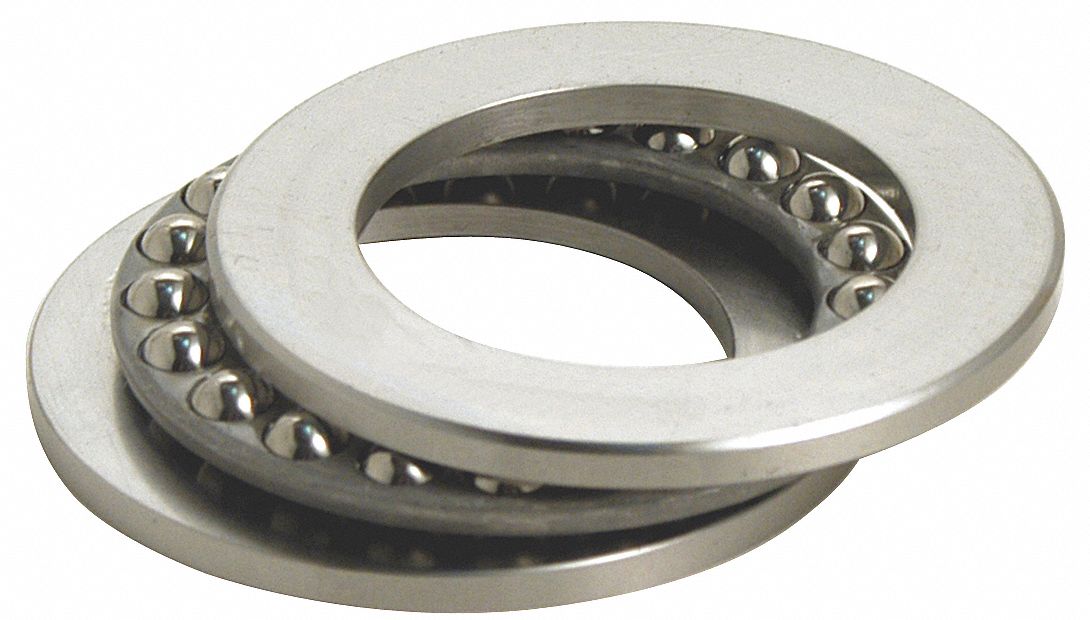

The TRITAN EW1/4 is an inch-system separable flat-race ball thrust bearing from the EW Series, featuring a polymer cage and AISI 52100-grade ball material. It has a 1/4-inch bore diameter, 41/64-inch outside diameter, and 0.25-inch overall width, with a maximum speed of 18,000 RPM in oil.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Flat |
| Brand | TRITAN |
| Bore Dia | 1/4 in |
| Overall Wd | 0.25 in |
| Outside Dia | 41/64 in |
| Cage Material | Polymer |
| Maximum Speed | 18,000 RPM Oil |
| Bearing Series | EW Series |
| Ball Material Grade | AISI 52100 |
| Thrust Bearing Type | Separable Ball Thrust Bearing |
| System Of Measurement | Inch |
| Bearing Industry Number | EW1/4 |
| Manufacturer Part Number | EW1/4 |
