Tritan 3G-OTH-106516 — Technical Specifications

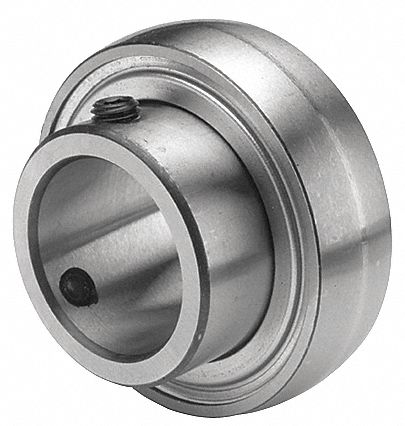

The TRITAN SB204-12G is a general purpose spherical insert bearing of the radial/deep groove ball type. It features a 3/4 inch bore, a 1 27/32 inch outer diameter, and a 0.551 inch outer ring width, with double sealed closure and set screw locking. This inch-system bearing is identified by industry number SB204-12G.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 1 27/32 in |
| Bore | 3/4 in |
| Type | Set Screws |
| Brand | TRITAN |
| Closure | Double Sealed |
| Outer Ring Wd | 0.551 in |
| Bearing Insert Type | Radial/Deep Groove Ball |
| System Of Measurement | Inch |
| Bearing Industry Number | SB204-12G |
| Manufacturer Part Number | SB204-12G |
