Tritan 3G-OTH-101169 — Technical Specifications

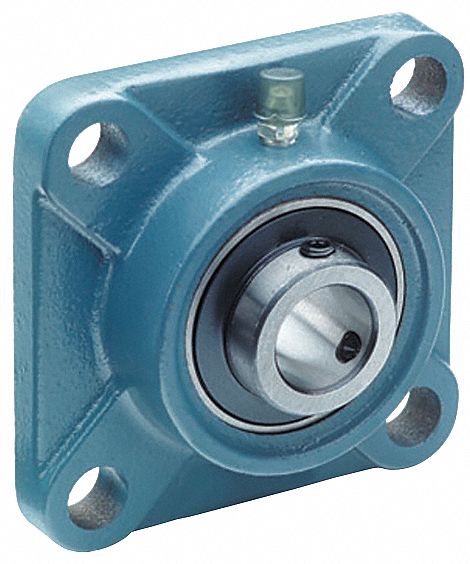

The TRITAN 4 Bolt Flange Bearing is a general purpose flange-mount radial ball bearing with a 25 mm cylindrical bore. It features a cast iron housing, set screw locking, and a mounting bolt size of M10. The bearing is lubricated with NLGI #2 equivalent grease and has overall dimensions of 95.2 mm length and 35.7 mm width (MPN UCF205-25MM).
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 95.2 mm |
| Wd | 35.7 mm |
| Bore | 25 mm |
| Type | Cast Iron, Set Screws |
| Brand | TRITAN |
| Bore Type | Cylindrical |
| Lubricant Material | NLGI #2 Equivalent |
| Mounting Bolt Size | M10 |
| System Of Measurement | Metric |
| Manufacturer Part Number | UCF205-25MM |
