Tritan 3G-OTH-121497 — Technical Specifications

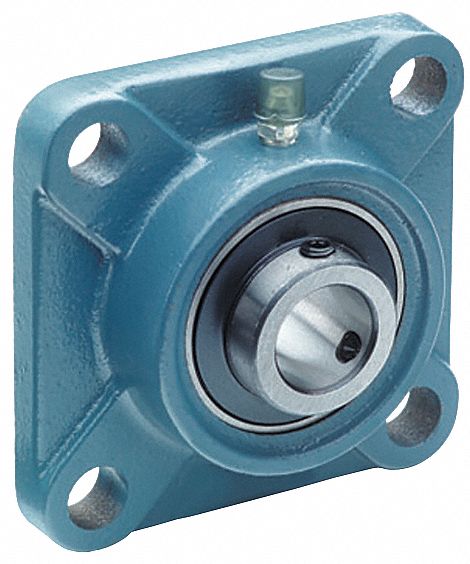

The TRITAN 4 Bolt Flange Bearing is a general purpose flange-mount radial ball bearing with a 20 mm cylindrical bore. It features a cast iron housing, set screws, and an NLGI #2 equivalent lubricant. The bearing has a mounting bolt size of M10 and overall dimensions of 85.7 mm length and 33.3 mm width, measured in metric system.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 85.7 mm |
| Wd | 33.3 mm |
| Bore | 20 mm |
| Type | Cast Iron, Set Screws |
| Brand | TRITAN |
| Bore Type | Cylindrical |
| Lubricant Material | NLGI #2 Equivalent |
| Mounting Bolt Size | M10 |
| System Of Measurement | Metric |
| Manufacturer Part Number | UCF204-20MM |
