Tritan 3G-OTH-100768 — Technical Specifications

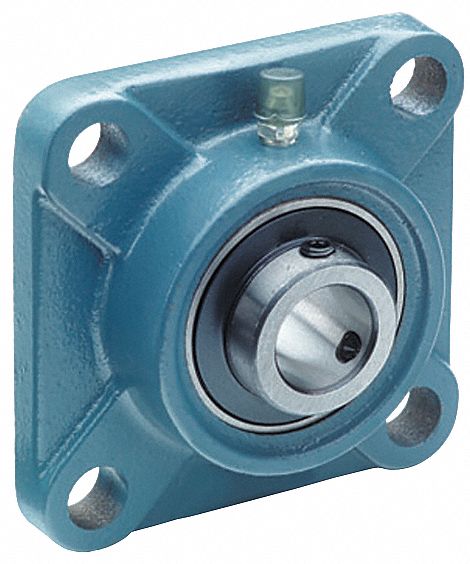

The TRITAN 4 Bolt Flange Bearing is a general purpose flange-mount radial ball bearing with a 19 mm cylindrical bore, cast iron housing, and set screw locking. It features a mounting bolt size of M10, lubricated with NLGI #2 equivalent grease, and measures 85.7 mm in length by 33.3 mm in width (MPN SBF204-12G).
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 85.7 mm |
| Wd | 33.3 mm |
| Bore | 19 mm |
| Type | Cast Iron, Set Screws |
| Brand | TRITAN |
| Bore Type | Cylindrical |
| Lubricant Material | NLGI #2 Equivalent |
| Mounting Bolt Size | M10 |
| System Of Measurement | Metric |
| Manufacturer Part Number | SBF204-12G |
