Timken 3G-OTH-116777 — Technical Specifications

Name: Timken 3G-OTH-116777 TIMKEN Pillow Block Bearing: 2 1/8 in Bore, Cast Iron, Set Screws, 2 1/2 in Shaft Ht, 250°F Max Temp (MPN UCP211-34). Key specifications — Brand: TIMKEN; Maximum Speed: 3200 RPM Grease; Mounting Bolt Size: 5/8 in; System of Measurement: Inch.
Brand: Timken

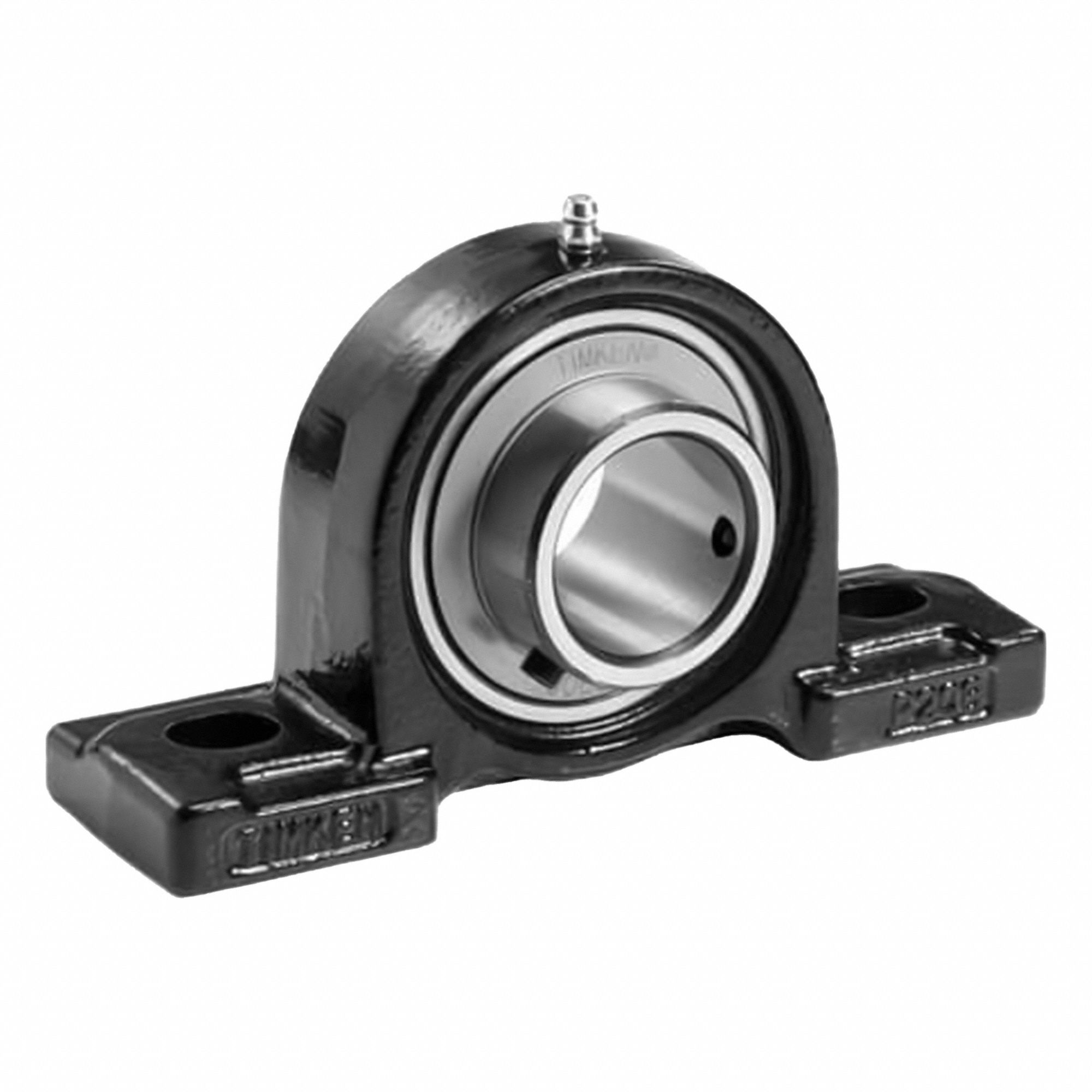

The TIMKEN UCP211-34 is a general purpose pillow block ball bearing with a 2 1/8 in bore, designed for inch-system applications. It features a cast iron housing, set screw locking, a 2 1/2 in shaft height, and a maximum operating temperature of 250°F. The bearing supports a maximum speed of 3200 RPM with grease lubrication and requires a 5/8 in mounting bolt size.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Cast Iron, Set Screws
Brand	TIMKEN
Max Temp	250°F
Shaft Ht	2 1/2 in
Maximum Speed	3200 RPM Grease
Mounting Bolt Size	5/8 in
System Of Measurement	Inch
Manufacturer Part Number	UCP211-34
