Timken 3G-OTH-104844 — Technical Specifications

Name: Timken 3G-OTH-104844 TIMKEN Pillow Block Bearing: 2 1/2 in Bore, Cast Iron, Set Screws, 3 in Shaft Ht, 10.5 in Overall Lg (MPN YASM 2-1/2). Key specifications — Brand: TIMKEN; Maximum Speed: 2700 RPM Grease; Mounting Bolt Size: 3/4 in; System of Measurement: Inch.
Brand: Timken

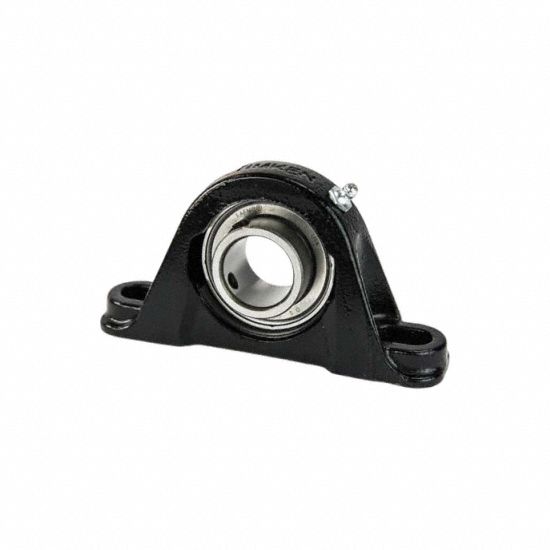

The TIMKEN Pillow Block Bearing (SKU 842W26, MPN YASM 2-1/2) is a medium duty pillow block ball bearing with a 2 1/2 in bore. It features a cast iron housing, set screw locking, a 3 in shaft height, and a 10.5 in overall length. The bearing has a maximum speed of 2700 RPM with grease lubrication and uses a 3/4 in mounting bolt size in the inch system of measurement.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Cast Iron, Set Screws
Brand	TIMKEN
Shaft Ht	3 in
Overall Lg	10.5 in
Maximum Speed	2700 RPM Grease
Mounting Bolt Size	3/4 in
System Of Measurement	Inch
Manufacturer Part Number	YASM 2-1/2
