Timken 3G-OTH-115303 — Technical Specifications

Name: Timken 3G-OTH-115303 TIMKEN Pillow Block Bearing: 5/8 in Bore, Cast Iron, Set Screws, 1 11/64 in Shaft Ht, 250°F Max Temp (MPN YAS 5/8). Key specifications — Brand: TIMKEN; Maximum Speed: 10900 RPM Grease; Mounting Bolt Size: 3/8 in; System of Measurement: Inch.
Brand: Timken

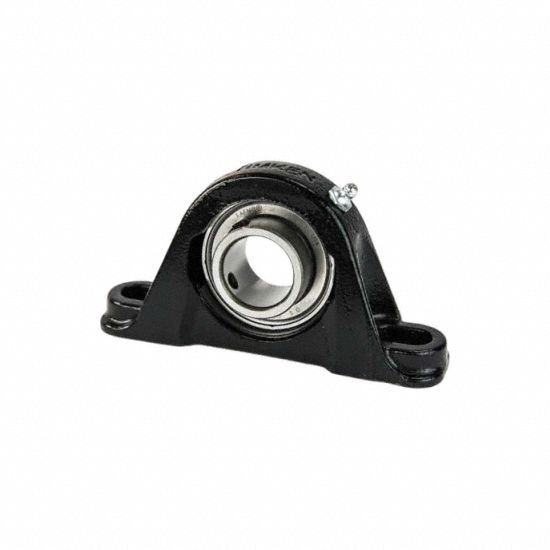

The TIMKEN YAS 5/8 is a general purpose pillow block ball bearing with a 5/8 in bore, constructed from cast iron and featuring set screw locking. It has a maximum speed of 10900 RPM with grease lubrication, a mounting bolt size of 3/8 in, a shaft height of 1 11/64 in, and a maximum operating temperature of 250°F, all in the inch system of measurement.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Cast Iron, Set Screws
Brand	TIMKEN
Max Temp	250°F
Shaft Ht	1 11/64 in
Maximum Speed	10900 RPM Grease
Mounting Bolt Size	3/8 in
System Of Measurement	Inch
Manufacturer Part Number	YAS 5/8
