Timken 3G-OTH-103146 — Technical Specifications

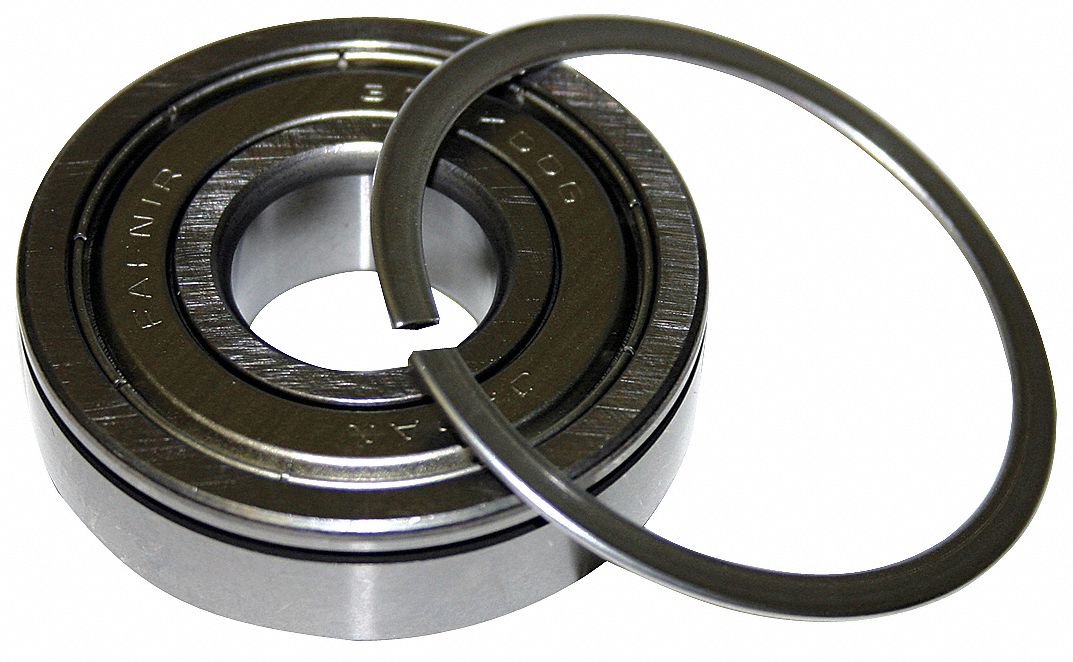

The TIMKEN Radial Ball Bearing: 6309 is a general purpose retaining ring ball bearing with a metric system of measurement. It features a 45 mm bore, single shield, 100 mm outer diameter, and 25 mm outer ring width, identified by manufacturer part number 309KDGN and bearing industry number 6309.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 100 mm |
| Bore | 45 mm |
| Type | Sngl Shield |
| Outer Ring Wd | 25 mm |
| System Of Measurement | Metric |
| Bearing Industry Number | 6309 |
| Manufacturer Part Number | 309KDGN |
