Thomson 3G-OTH-123364 — Technical Specifications

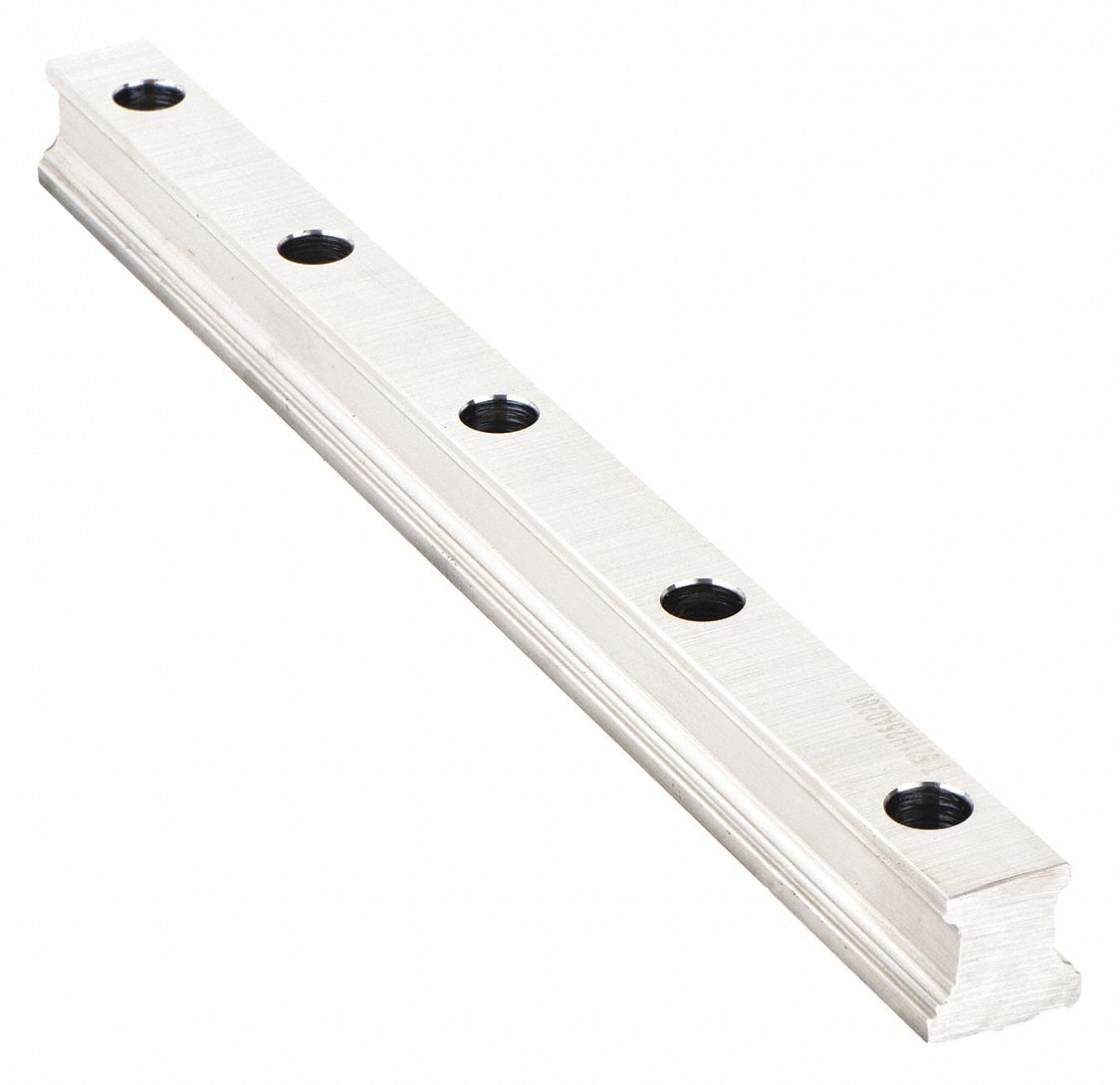

The Thomson 500 Series Profile Ball Rail: 15 is a steel linear motion rail with a nominal size of 15, an overall length of 460 mm, an overall width of 15 mm, and an overall height of 15.7 mm. It features 6 rail holes and is identified by manufacturer part number 521H15A+460.
Technical Specifications
| Parameter | Value |
|---|---|
| Size | 15 |
| Type | Steel |
| Brand | THOMSON |
| Overall Ht | 15.7 mm |
| Overall Lg | 460 mm |
| Overall Wd | 15 mm |
| Rail Holes | 6 |
| Nominal Rail Size | 15 |
| Manufacturer Part Number | 521H15A+460 |
