Tempco 3G-OTH-182373 — Technical Specifications

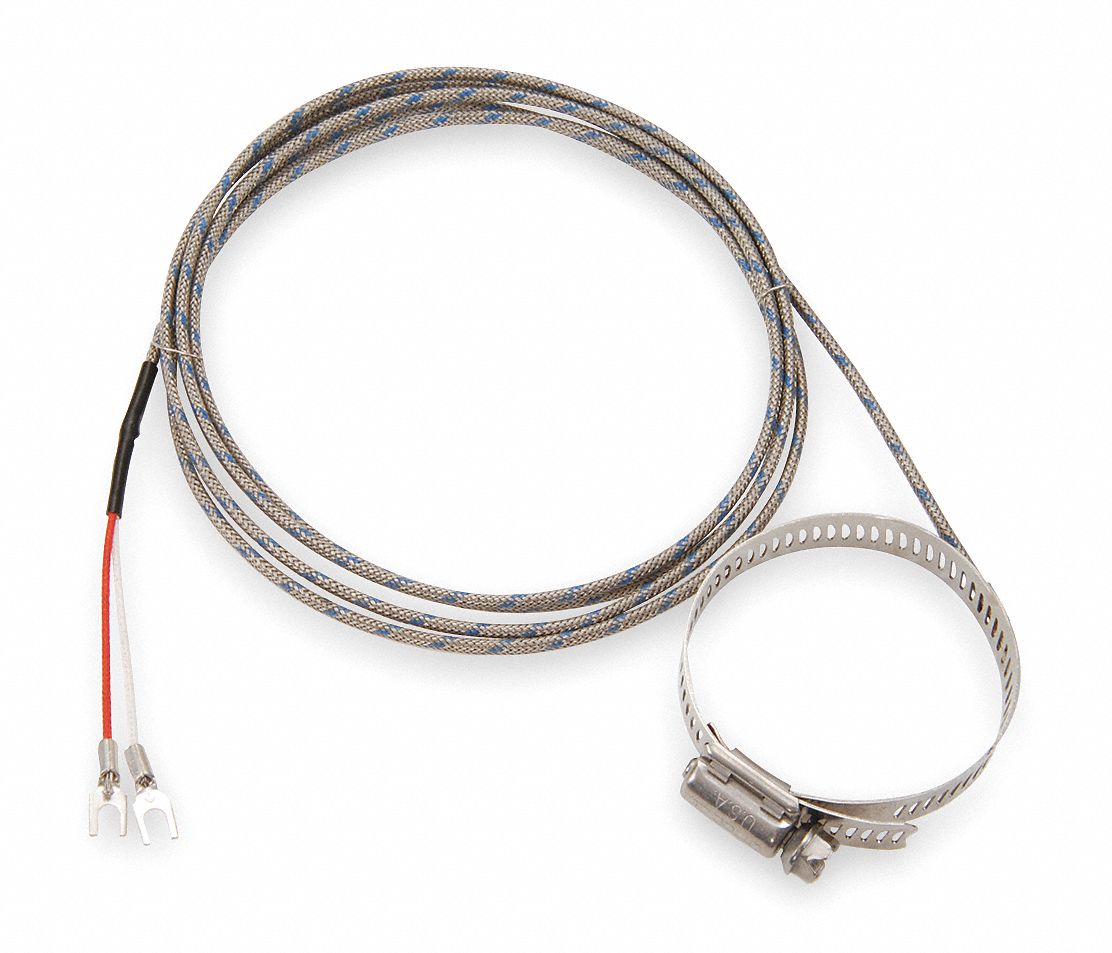

The TEMPCO Pipe Clamp Thermocouple (SKU 3CAF5, MPN TPW00035) is a Type J thermocouple for surface applications, with a temperature range of 32°F to 1,400°F /0°C to 760°C. It features a hose clamp process mounting connection, a 12 ft fiberglass cable with stainless steel braid, and an accuracy of ±2.2 °C or ±0.75 %, whichever is greater. The maximum wire gauge is 0.25 mm.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Type J, Hose Clamp |
| Brand | TEMPCO |
| Accuracy | ±2.2 °C or ±0.75 %, Whichever is Greater |
| Cable Length | 12 ft |
| Cable Material | Fiberglass with Stainless Steel Braid |
| Maximum Wire Gauge | 0.25 mm |
| Manufacturer Part Number | TPW00035 |
| Process Mounting Connection | Hose Clamp |
