Tempco 3G-OTH-182374 — Technical Specifications

Name: Tempco 3G-OTH-182374 TEMPCO Pipe Clamp Thermocouple: 32°F to 1,400°F /0°C to 760°C, Type J, Hose Clamp (MPN TPW00034). Key specifications — Brand: TEMPCO; Cable Material: Fiberglass with Stainless Steel Braid; Cable Length: 6 ft; Accuracy: ±2.2 °C or ±0.75 %, Whichever is Greater; Process Mounting Connection: Hose Clamp; Maximum Wire Gauge: 0.25 mm.
Brand: Tempco

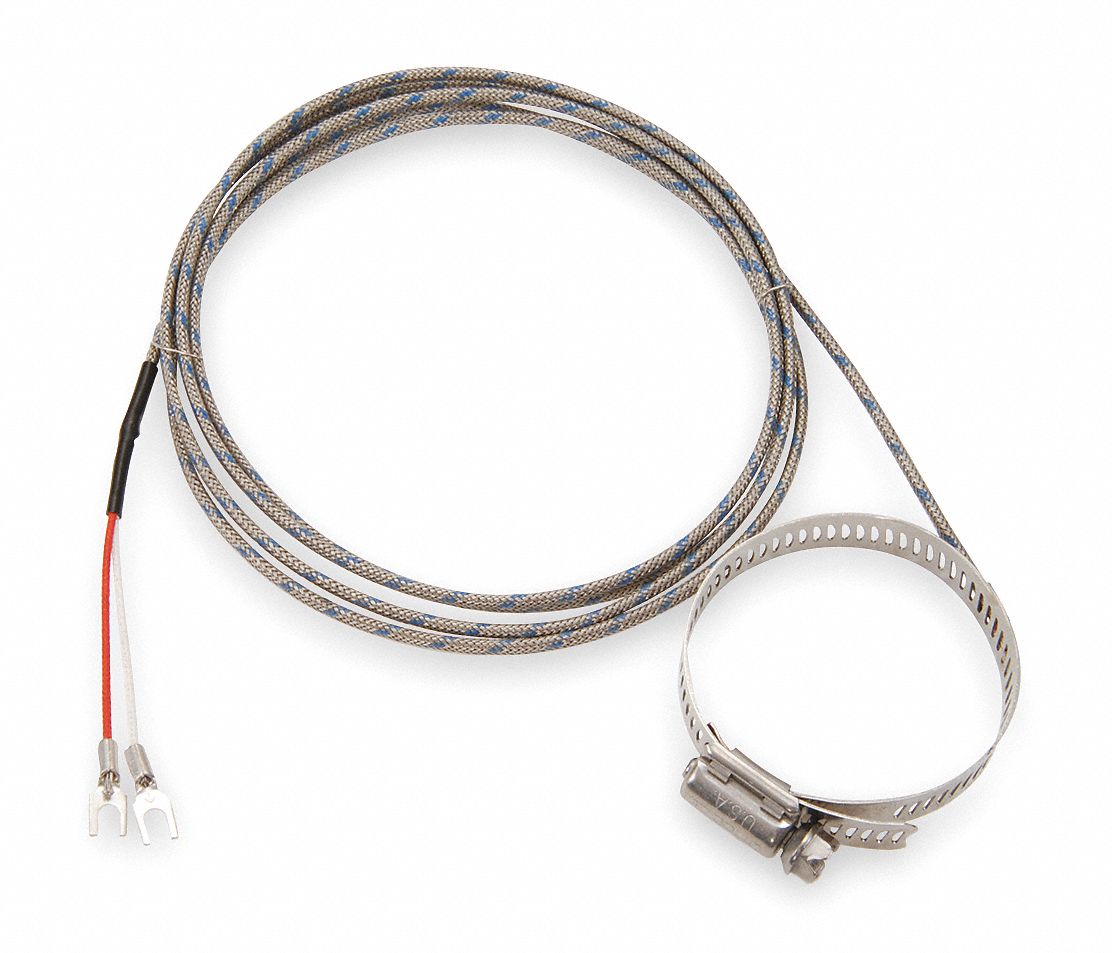

The TEMPCO Pipe Clamp Thermocouple is a Type J thermocouple for surface applications, featuring a hose-clamp mounting connection and a 6 ft fiberglass cable with stainless steel braid. It offers an accuracy of ±2.2 °C or ±0.75 %, whichever is greater, and supports a maximum wire gauge of 0.25 mm. This sensor is designed for temperature measurement from 32°F to 1,400°F (0°C to 760°C).

View Product & Quote

Technical Specifications

Parameter	Value
Type	Type J, Hose Clamp
Brand	TEMPCO
Accuracy	±2.2 °C or ±0.75 %, Whichever is Greater
Cable Length	6 ft
Cable Material	Fiberglass with Stainless Steel Braid
Maximum Wire Gauge	0.25 mm
Manufacturer Part Number	TPW00034
Process Mounting Connection	Hose Clamp
