Tempco 3G-OTH-182363 — Technical Specifications

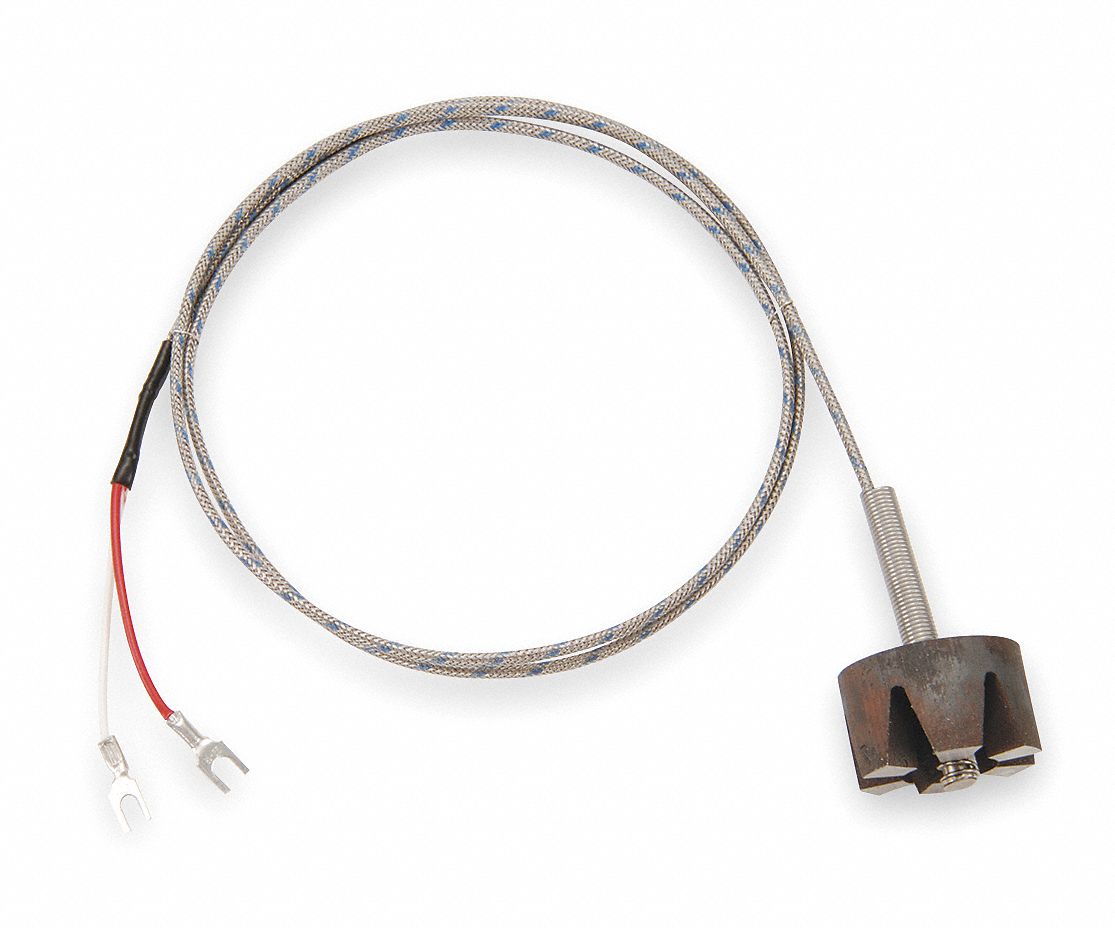

The TEMPCO Magnet Thermocouple is a Type K thermocouple for surface applications, featuring a magnet mounting connection for attachment to ferrous surfaces. It offers a temperature range of 32°F to 2,300°F (0°C to 1,260°C) with an accuracy of ±2.2 °C or ±0.75%, whichever is greater. The unit includes a 6 ft FEP Teflon cable with stainless steel braid and a maximum wire gauge of 0.25 mm.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Type K, For Solids/Surfaces Media Type |
| Brand | TEMPCO |
| Accuracy | ±2.2 °C or ±0.75 %, Whichever is Greater |
| Cable Length | 6 ft |
| Cable Material | FEP Teflon with Stainless Steel Braid |
| Maximum Wire Gauge | 0.25 mm |
| Manufacturer Part Number | TMW00019 |
| Process Mounting Connection | Magnet |
