Tempco 3G-OTH-182369 — Technical Specifications

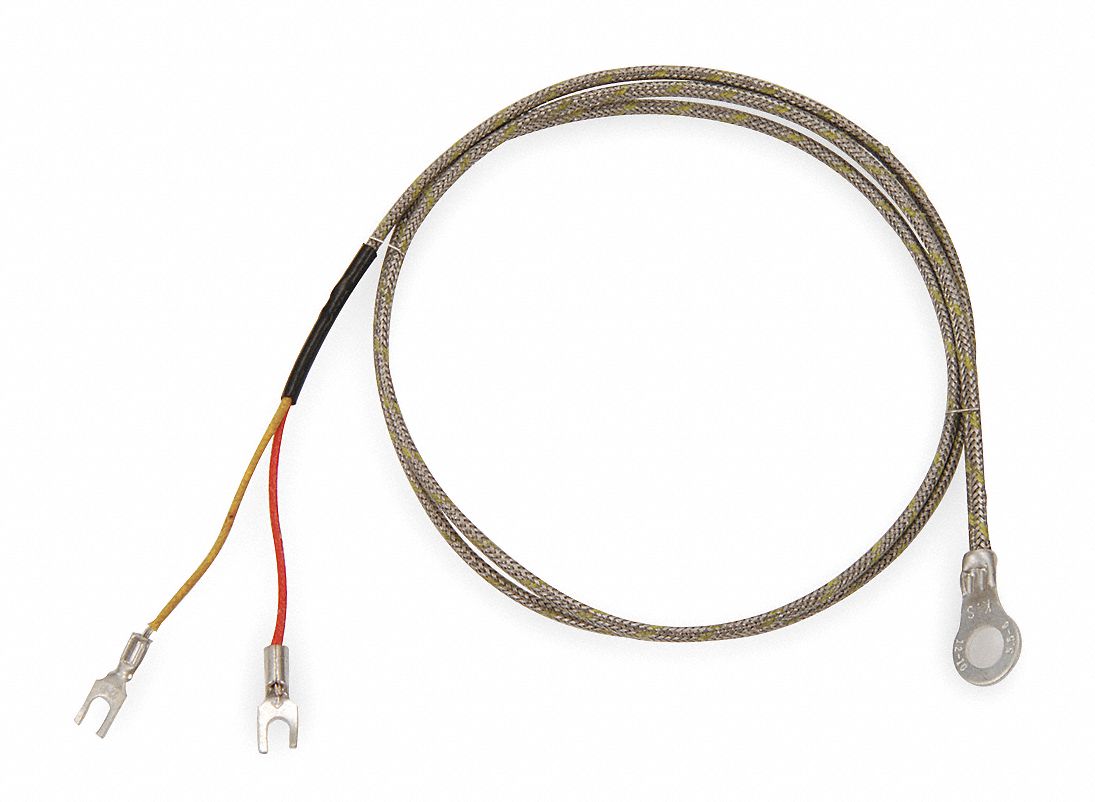

The TEMPCO Ring Thermocouple (Type J) is a thermocouple for surface applications designed to measure temperatures from 32°F to 1,400°F (0°C to 760°C). It features a 12 ft fiberglass cable with stainless steel braid, a bolt mounting connection, and an accuracy of ±2.2 °C or ±0.75%, whichever is greater. The maximum wire gauge is 0.25 mm.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Type J, For Solids/Surfaces Media Type |
| Brand | TEMPCO |
| Accuracy | ±2.2 °C or ±0.75 %, Whichever is Greater |
| Cable Length | 12 ft |
| Cable Material | Fiberglass with Stainless Steel Braid |
| Maximum Wire Gauge | 0.25 mm |
| Manufacturer Part Number | TRW00106 |
| Process Mounting Connection | Bolt |
