Tempco 3G-OTH-65441 — Technical Specifications

Name: Tempco 3G-OTH-65441 TEMPCO Circulation Heater: 3 Phase, 480V AC, 40,000 W Watt, 5 in Flange Size, 48 W/sq in (MPN CHF02348). Key specifications — Watt Density: 48 W/sq in; Screw Plug Material: Stainless Steel; Sheath Material: Incoloy(R) 840; Brand: TEMPCO; Control Range: 60° to 250°F; Flange Size: 5 in.
Brand: Tempco

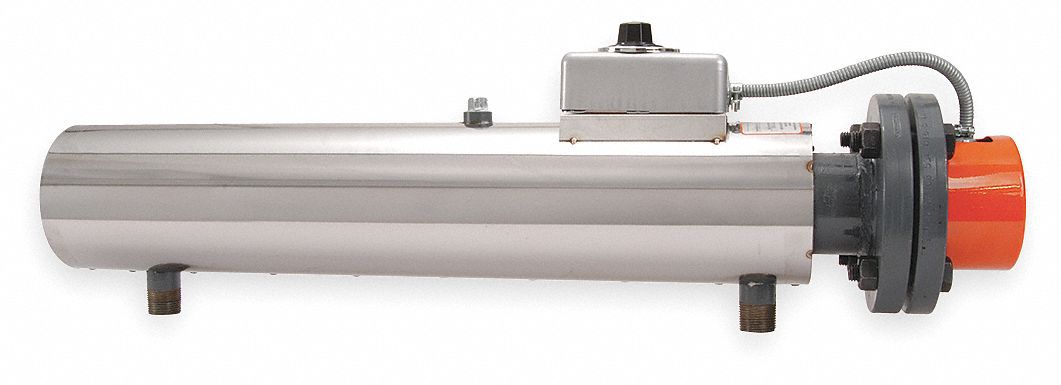

The TEMPCO Circulation Heater: 3 Phase is a pipeline immersion heater with a 5 in flange size, 48 W/sq in watt density, and a control range of 60° to 250°F. It features an Incoloy(R) 840 sheath and stainless steel screw plug, operating at 480V AC and 40,000 W. This model (MPN CHF02348) is designed for direct immersion in pipelines.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	TEMPCO
Flange Size	5 in
Watt Density	48 W/sq in
Control Range	60° to 250°F
Sheath Material	Incoloy(R) 840
Screw Plug Material	Stainless Steel
Manufacturer Part Number	CHF02348
