Telemecanique Sensors 3G-OTH-176699 — Technical Specifications

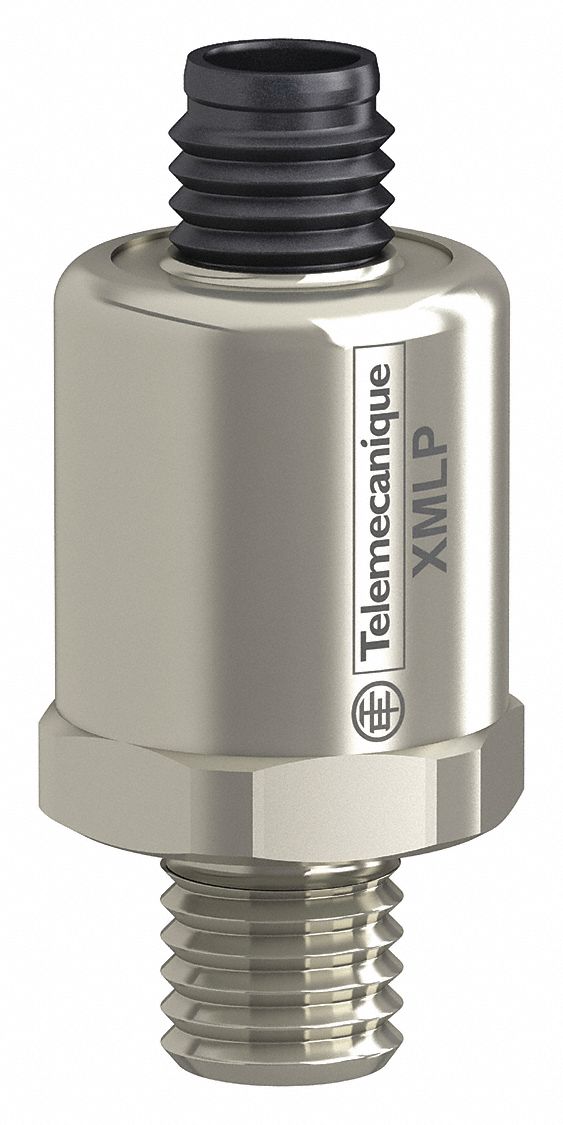

The TELEMECANIQUE SENSORS Pressure Transmitter (SKU 55WX24, MPN XMLP300PD230) is a 0 psi to 300 psi pressure transmitter from the XMLP series, featuring a 4-Pin M12 Connector and a 4 to 20mA DC output. It offers an accuracy of ±0.5%, an overpressure rating of 900 psi, and a burst pressure of 2,200 psi. The stainless steel housing carries an IP69K rating, and the process connection is a 1/4 in Male NPT. No NIST-traceable calibration certificate is included.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 4 to 20mA |
| Brand | TELEMECANIQUE SENSORS |
| Output | 4 to 20mA DC |
| Series | XMLP |
| Accuracy | ±0.5% |
| Male NPT | 1/4 in |
| IP Rating | IP69K |
| Overpressure | 900 psi |
| M12 Connector | 4-Pin |
| Burst Pressure | 2,200 psi |
| Housing Material | Stainless Steel |
| Process Connection Type | NPT |
| Manufacturer Part Number | XMLP300PD230 |
| Process Connection Gender | Male |
| Calibration Certificate Included | No NIST-Traceable Calibration Certificate Included |
