Surge Trap 3G-OTH-22908 — Technical Specifications

Name: Surge Trap 3G-OTH-22908 SURGE TRAP Surge Protection Device: Three Phase, 120/208V AC Wye, 150/300 V AC, Polycarbonate, 4X (MPN STXR208Y05N). Key specifications — Voltage: 120/208V AC Wye; Max. Continuing Operating Voltage: 150/300 V AC; Voltage Protection Rating: 1800V (H-G, H-L, L-G, L-L); Enclosure Material: Polycarbonate; Max. Surge Current per Mode: 50kA; Brand: SURGE TRAP.
Brand: Surge Trap

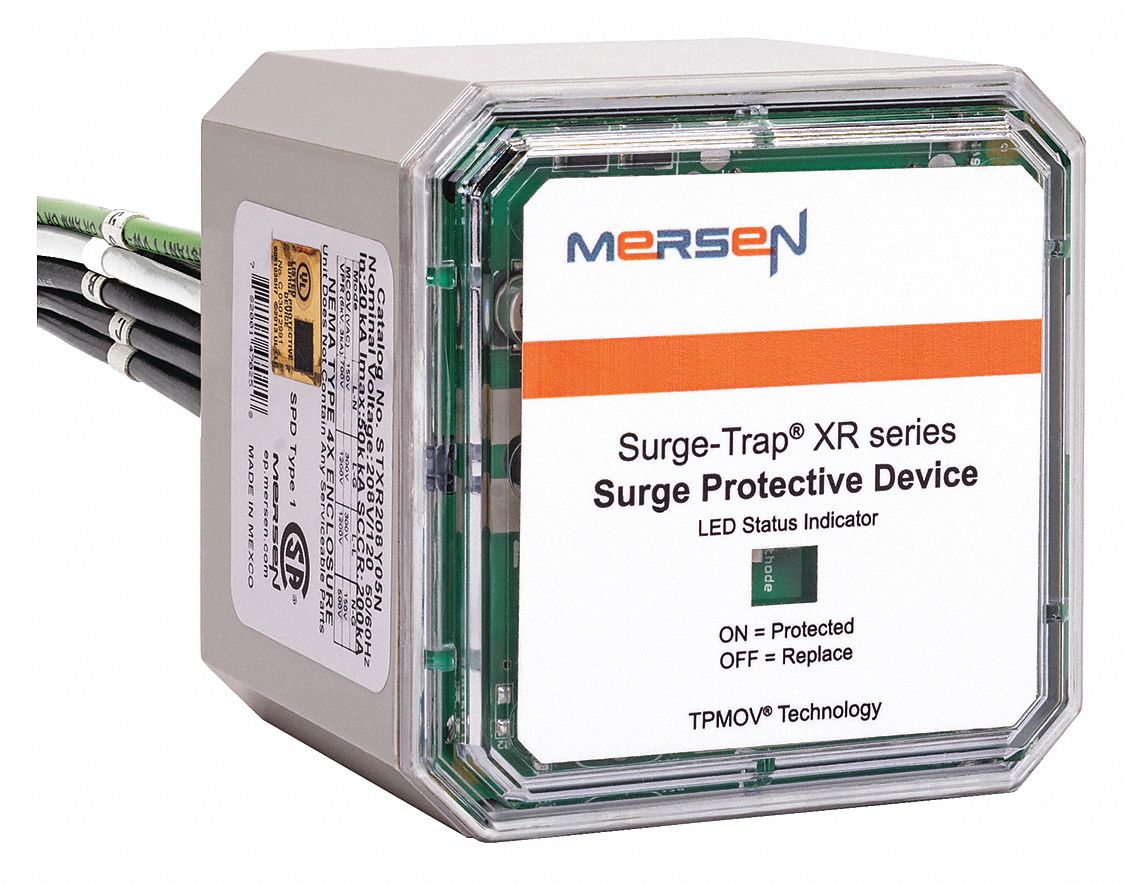

The SURGE TRAP Surge Protection Device: Three Phase is a chase-nipple external-mount SPD with a polycarbonate enclosure and a NEMA 4X rating. It operates on a 120/208V AC Wye system with a maximum continuing operating voltage of 150/300 V AC and a voltage protection rating of 1800V (H-G, H-L, L-G, L-L). Each mode supports a maximum surge current of 50kA.

View Product & Quote

Technical Specifications

Parameter	Value
AC	150/300 V
Type	Polycarbonate, 4X
Brand	SURGE TRAP
AC Wye	120/208V
Voltage	120/208V AC Wye
Enclosure Material	Polycarbonate
Manufacturer Part Number	STXR208Y05N
Voltage Protection Rating	1800V (H-G, H-L, L-G, L-L)
Max. Surge Current Per Mode	50kA
Max. Continuing Operating Voltage	150/300 V AC
