Surge Trap 3G-OTH-22999 — Technical Specifications

Name: Surge Trap 3G-OTH-22999 SURGE TRAP Surge Protection Device: Single Phase, 120V AC, 1200V (L-G)/600V (N-G)/700V (L-N), 4X (MPN STXR120P05N). Key specifications — Voltage: 120V AC; Max. Continuing Operating Voltage: 150 V AC; Voltage Protection Rating: 1200V (L-G); Enclosure Material: Polycarbonate; Max. Surge Current per Mode: 50kA; Brand: SURGE TRAP.
Brand: Surge Trap

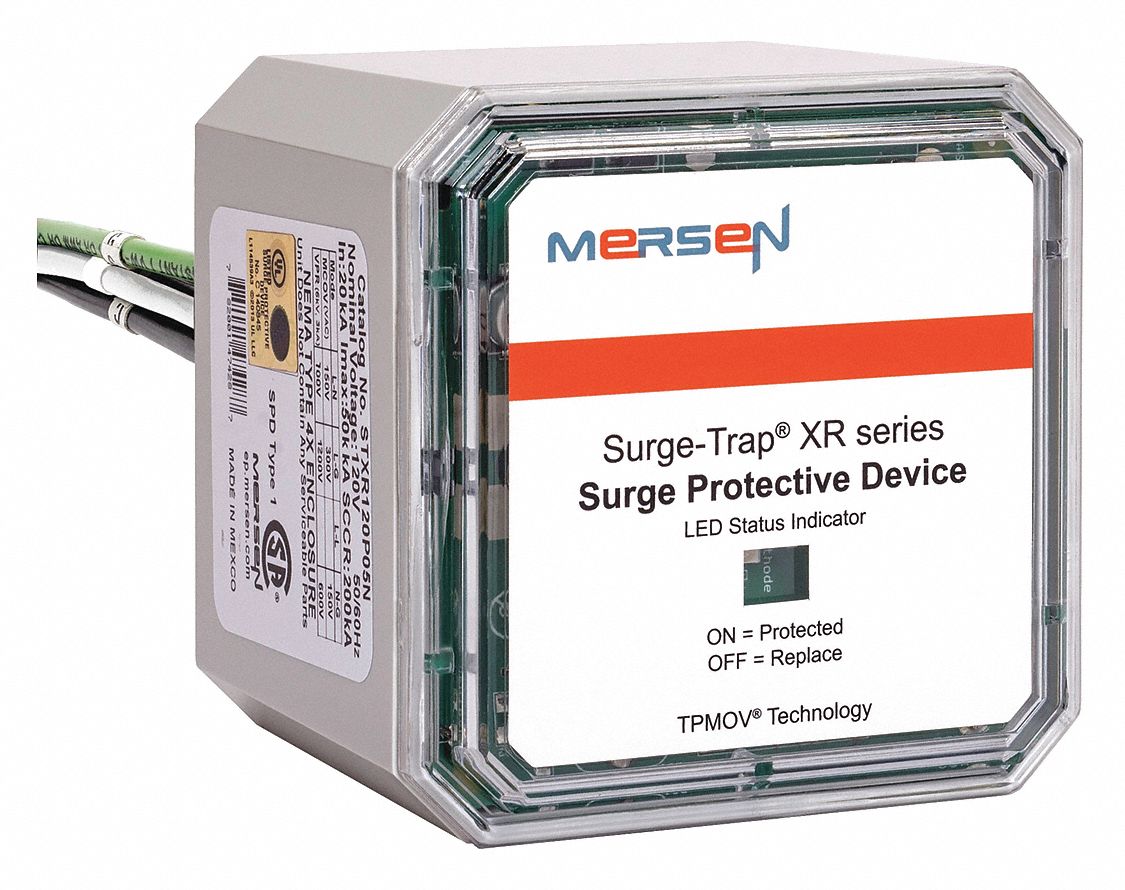

The SURGE TRAP STXR120P05N is a single-phase Chase-Nipple External-Mount SPD with a polycarbonate enclosure. It operates at 120V AC with a maximum continuing operating voltage of 150 V AC and a voltage protection rating of 1200V (L-G). The device offers a maximum surge current per mode of 50kA.

View Product & Quote

Technical Specifications

Parameter	Value
AC	120V
Type	1200V (L-G)/600V (N-G)/700V (L-N), 4X
Brand	SURGE TRAP
Voltage	120V AC
Enclosure Material	Polycarbonate
Manufacturer Part Number	STXR120P05N
Voltage Protection Rating	1200V (L-G)
Max. Surge Current Per Mode	50kA
Max. Continuing Operating Voltage	150 V AC
