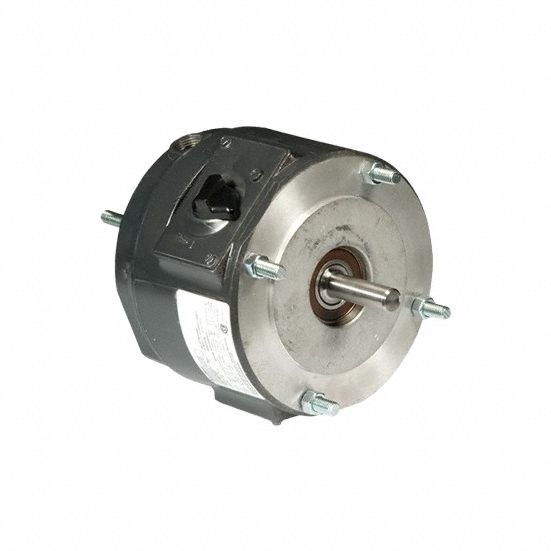

Stearns 3G-OTH-109975 — Technical Specifications
The STEARNS Spring-Set Holding Brake (ERS) is a combined clutch and brake unit designed for use with C-Face motors. It features a Totally Enclosed Wash Down enclosure and is compatible with motor frame designations 143TC, 145TC, and NEMA 56C. The unit operates on 115/230V AC with a 5/8 in bore size (MPN 105671205 PF).
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 115/230V |
| Brand | STEARNS |
| Bore Size | 5/8 in |
| For Use With | C-Face Motors |
| Enclosure Type | Totally Enclosed Wash Down |
| Clutch/Brake Type | Spring-Set Holding Brake (ERS) |
| Mounting Location | C-Face Motor |
| Motor Frame Designation | 143TC |
| Manufacturer Part Number | 105671205 PF |
