Square D 3G-OTH-28458 — Technical Specifications

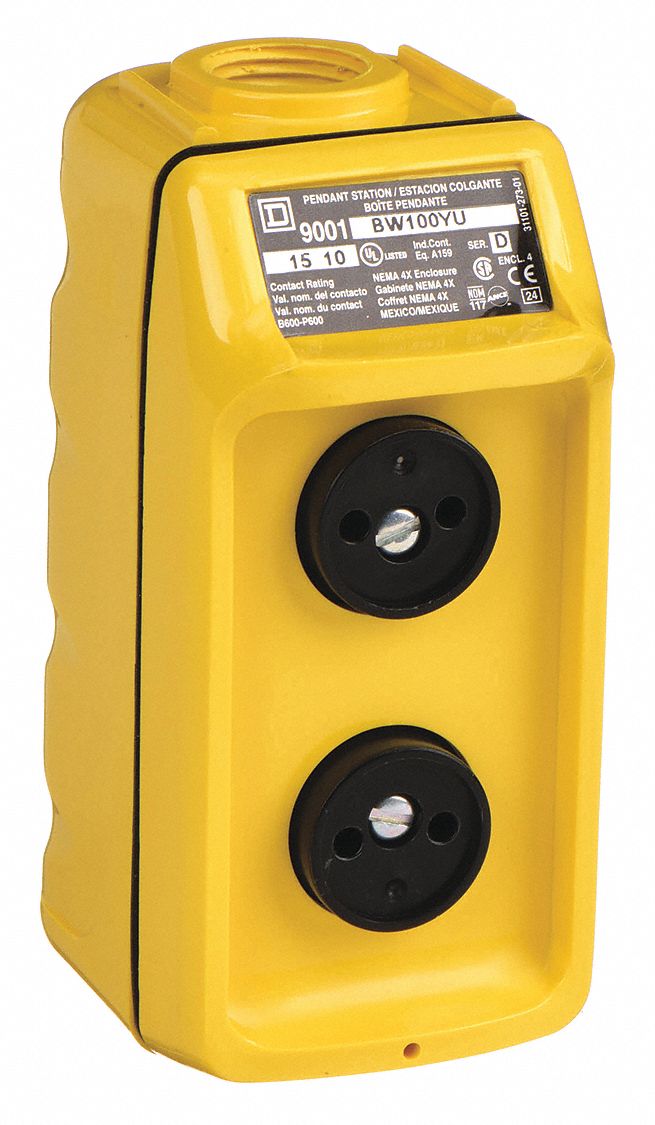

The SQUARE D Pendant Control Station (MPN 9001BW100YU) is a push-button pendant with two momentary/momentary push buttons and a dead-end hub style. It features a thermoplastic enclosure, carries AC and DC contact ratings of 5 A @ 600 V, and is rated NEMA 1/3/3R/4/4X with no legend.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 2NO, No Legend, NEMA 1/3/3R/4/4X |
| Brand | SQUARE D |
| Action | Momentary/Momentary |
| Legend | No Legend |
| Hub Style | Dead-End |
| AC Contact Rating | 5 A @ 600 V |
| DC Contact Rating | 5 A @ 600 V |
| Enclosure Material | Thermoplastic |
| Operator Configuration | (2) Push Buttons |
| Manufacturer Part Number | 9001BW100YU |
| Operator Configuration Type | (2) Push Buttons |
