Square D 3G-OTH-42898 — Technical Specifications

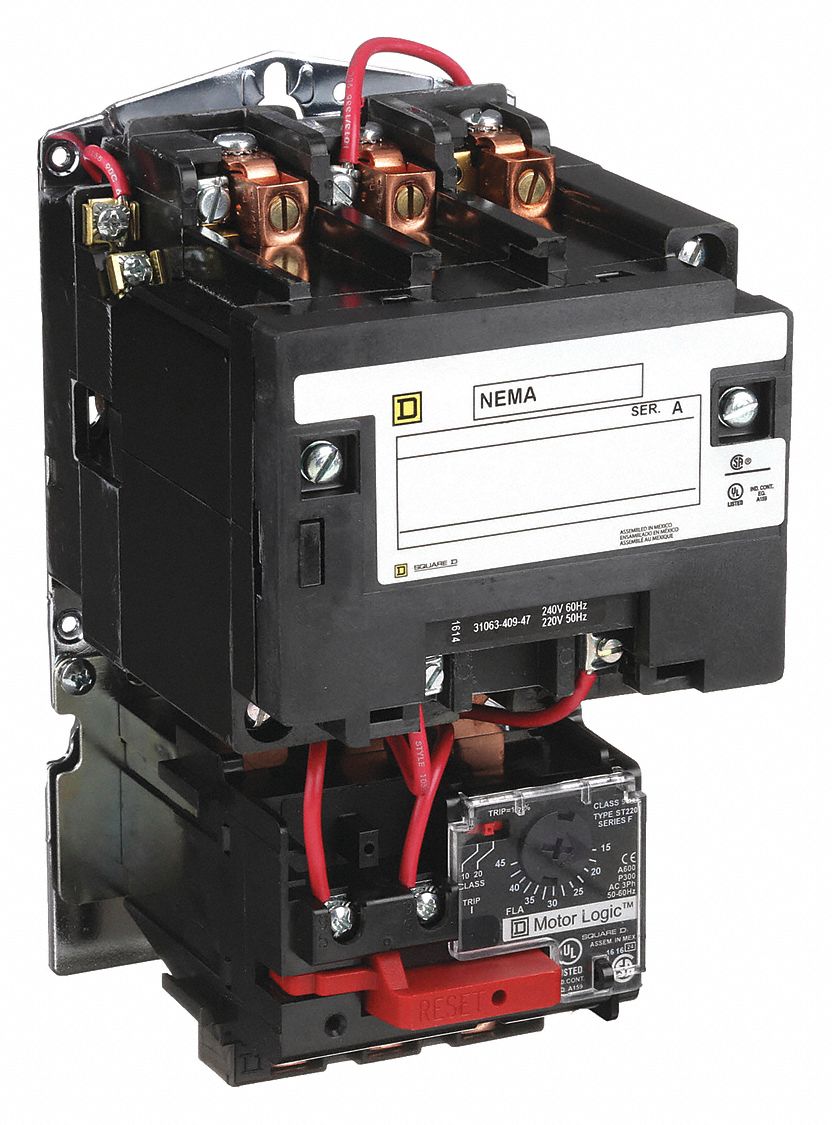

Name: Square D 3G-OTH-42898 SQUARE D NEMA Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 2, 45 A, 208V AC Coil (MPN 8536SDO1V08H30). Key specifications — Brand: SQUARE D; Coil Voltage: 208V AC; Phase: Three; Operator: None; Terminal Connection Type: Screw Clamp Terminals; Includes Pilot Light: No; Operator Controls: None; Auxiliary Contacts Included: No Auxiliary Contacts Included.
Brand: Square D

The SQUARE D NEMA Magnetic Motor Starter is a non-reversing starter with an electronic overload, designed for three-phase applications. This NEMA Size 2 unit is rated for 45 A and features a 208V AC coil, with screw clamp terminals and no auxiliary contacts or operator controls included.

View Product & Quote

Technical Specifications

Parameter	Value
Type	NEMA Size 2, 45 A
Brand	SQUARE D
Phase	Three
Poles	3
AC Coil	208V
Operator	None
Coil Voltage	208V AC
Operator Controls	None
Includes Pilot Light	No
Thermal Units Required	None (Not Applicable to Electronic Overloads)
Manufacturer Part Number	8536SDO1V08H30
Terminal Connection Type	Screw Clamp Terminals
Auxiliary Contacts Included	No Auxiliary Contacts Included
