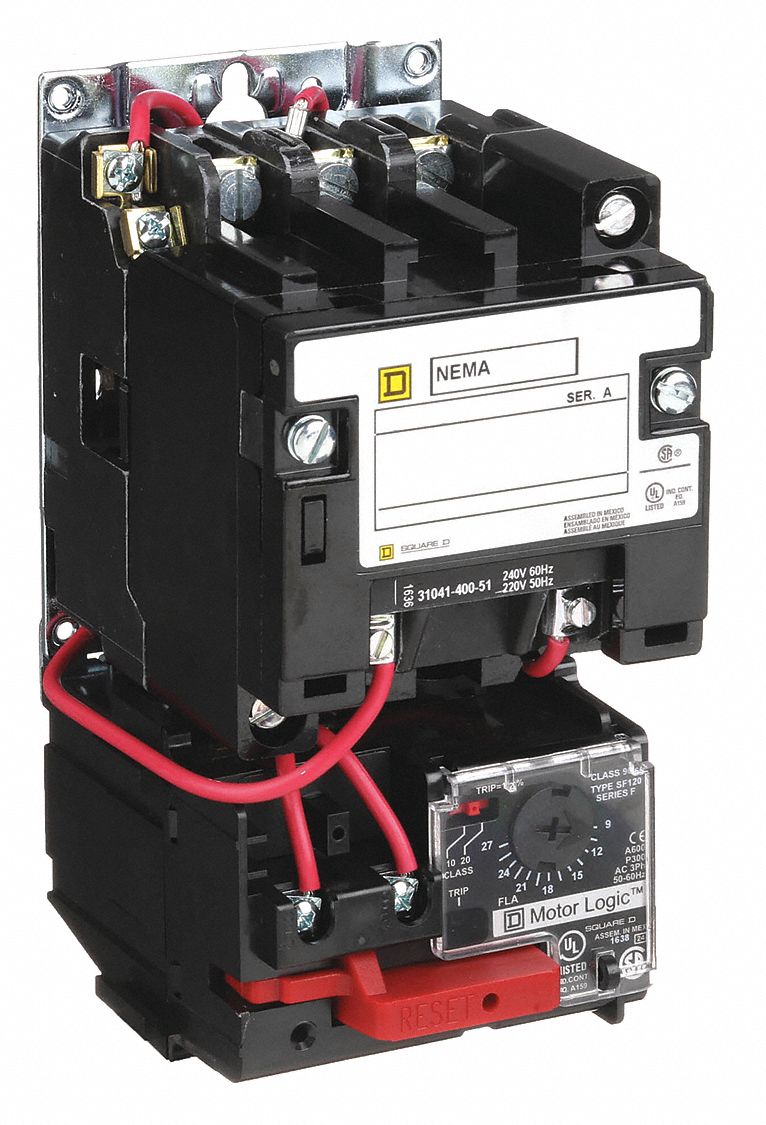

Square D 3G-OTH-42506 — Technical Specifications
The SQUARE D NEMA Magnetic Motor Starter is a non-reversing starter with electronic overloads, designed for three-phase applications. This NEMA Size 1 unit features a 480V AC coil, 27 A rating, and screw clamp terminals. It includes no operator, no auxiliary contacts, and no pilot light, with thermal units not applicable due to the electronic overload design.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 1, 27 A |
| Brand | SQUARE D |
| Phase | Three |
| Poles | 3 |
| AC Coil | 480V |
| Operator | None |
| Coil Voltage | 480V AC |
| Operator Controls | None |
| Includes Pilot Light | No |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Manufacturer Part Number | 8536SCO3V06H30 |
| Terminal Connection Type | Screw Clamp Terminals |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
