Square D 3G-OTH-41407 — Technical Specifications

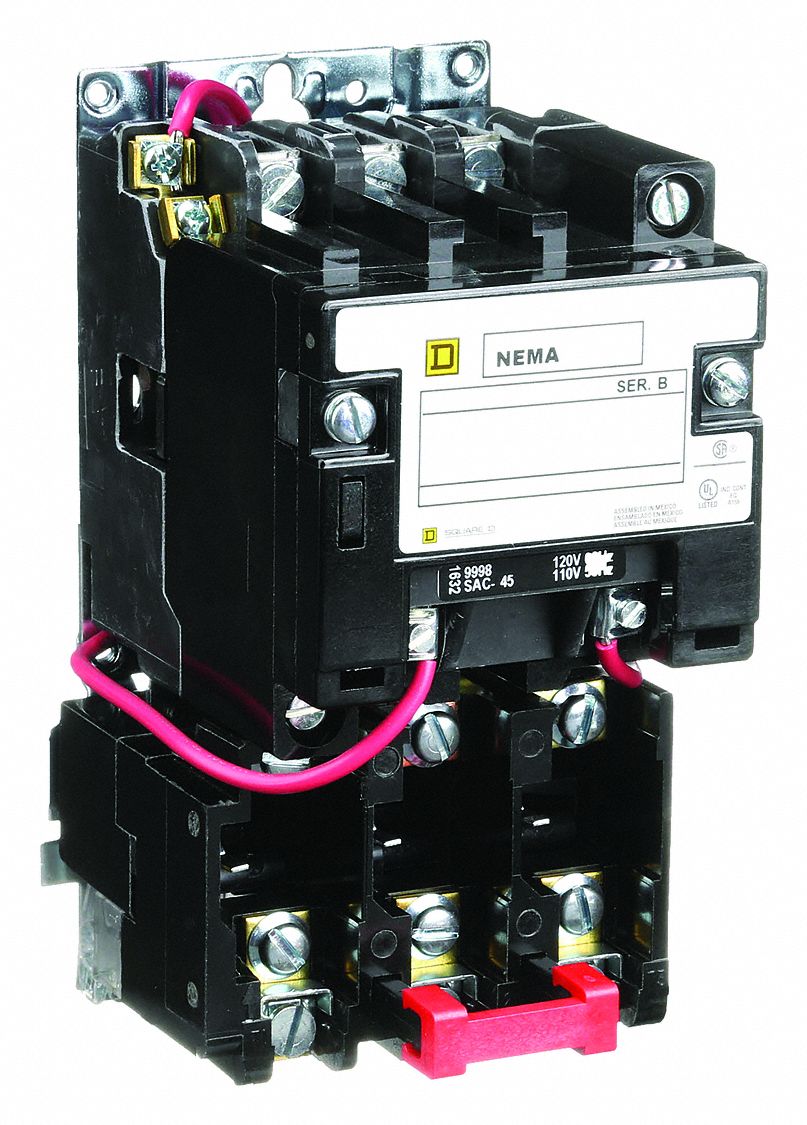

The SQUARE D Magnetic Motor Starter is a non-reversing starter with thermal overloads, part of the 8536SAO12V06 series. This three-phase unit features a 440/480V AC coil, NEMA Size 00, 9 A rating, and screw clamp terminals. It requires three melting alloy thermal units (not included) and has no operator, pilot light, or auxiliary contacts.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 00, 9 A |
| Brand | SQUARE D |
| Phase | Three |
| Poles | 3 |
| AC Coil | 480V |
| Operator | None |
| Coil Voltage | 440/480V AC |
| Operator Controls | None |
| Includes Pilot Light | No |
| Thermal Units Required | 3 Melting Alloy Units (Not Included) |
| Manufacturer Part Number | 8536SAO12V06 |
| Terminal Connection Type | Screw Clamp Terminals |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
