Square D 3G-OTH-22588 — Technical Specifications

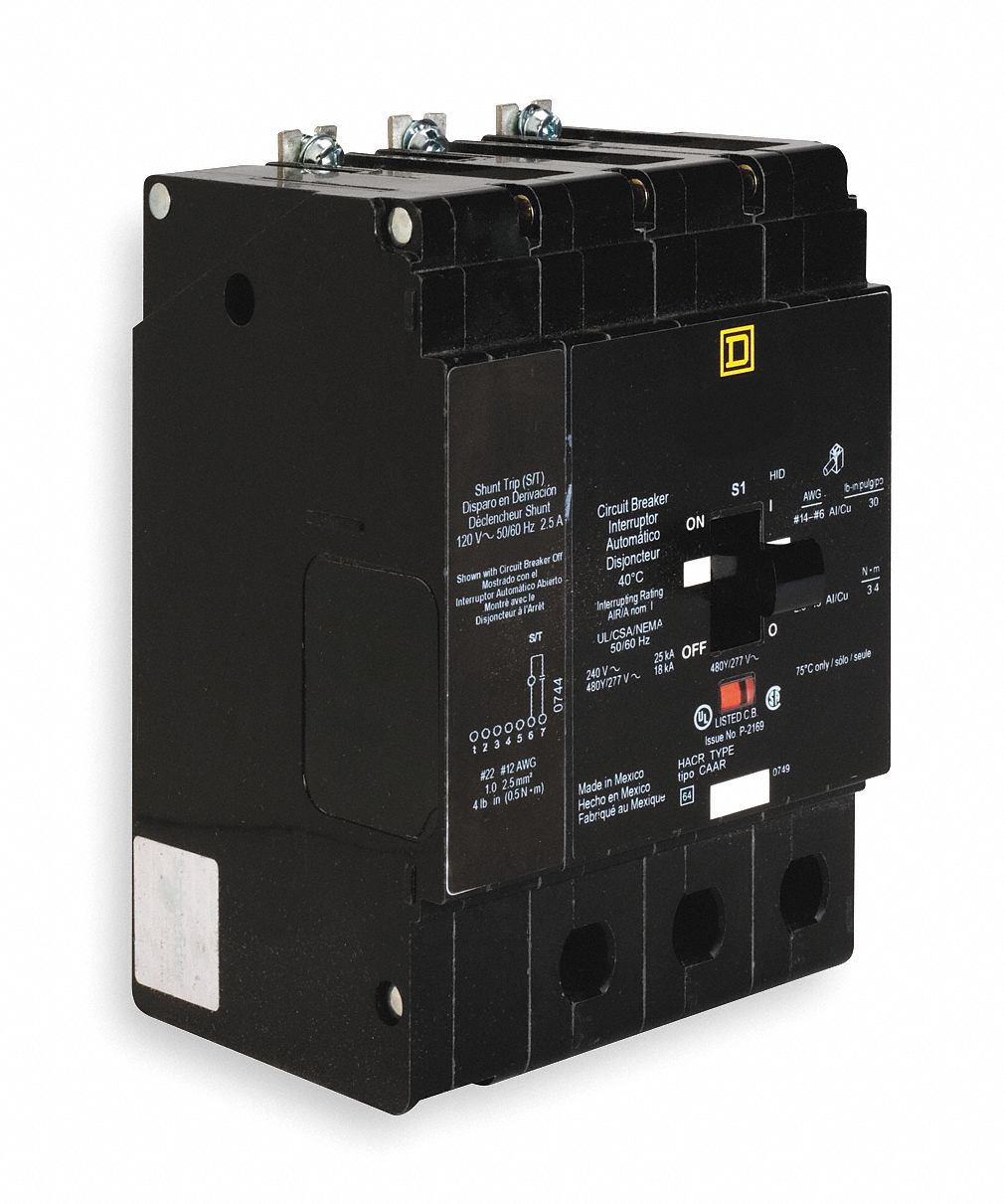

The SQUARE D EDB34040SA is a 40 A, three-phase miniature circuit breaker from the EDB & EGB Series, designed for bolt-on installation. It is rated for 277/480V AC with a maximum AIR rating of 18kA at 277/480V AC and is intended for use with Square D NF Panelboards.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 277/480V |
| Amps | 40 A |
| Type | Three Phase, 18kA at 277/480V AC |
| Brand | SQUARE D |
| Phase | Three |
| Poles | 3 |
| For Use With | Square D NF Panelboards |
| Max. AIR Rating | 18kA at 277/480V AC |
| AC Voltage Rating | 277/480V AC |
| Manufacturer Part Number | EDB34040SA |
