Square D 3G-OTH-41186 — Technical Specifications

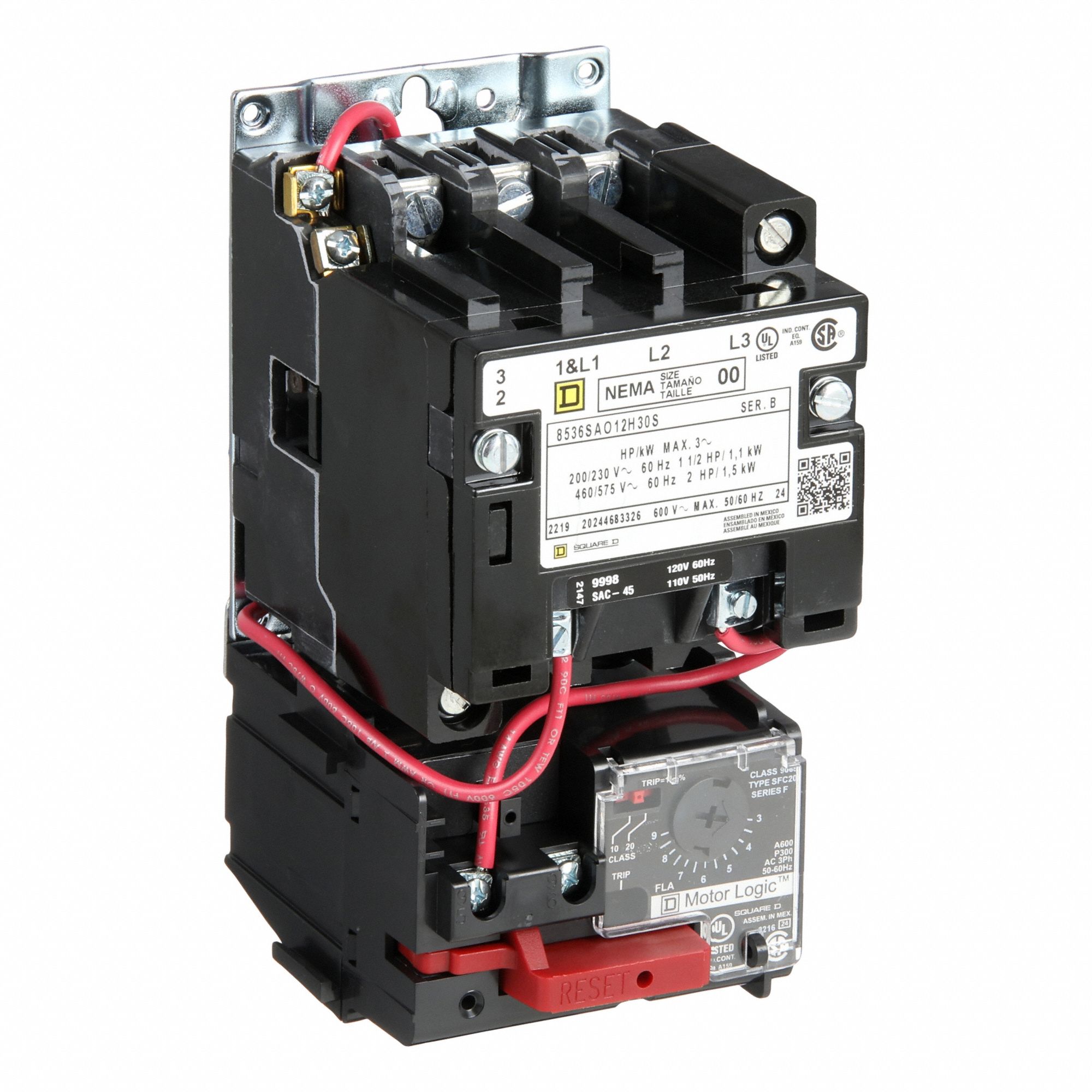

The SQUARE D NEMA Magnetic Motor Starter is a non-reversing starter with electronic overloads, designed for three-phase applications. This unit features a 110/120V AC coil, NEMA Size 00, and a 9 A rating, with screw clamp terminals and no auxiliary contacts or operator controls. The model 8536SAO12V02H30S is a non-reversing starter that does not require thermal units, as it uses electronic overload protection.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 00, 9 A |
| Brand | SQUARE D |
| Phase | Three |
| Poles | 3 |
| AC Coil | 120V |
| Operator | None |
| Coil Voltage | 110/120V AC |
| Operator Controls | None |
| Includes Pilot Light | No |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Manufacturer Part Number | 8536SAO12V02H30S |
| Terminal Connection Type | Screw Clamp Terminals |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
