Square D 3G-OTH-40880 — Technical Specifications

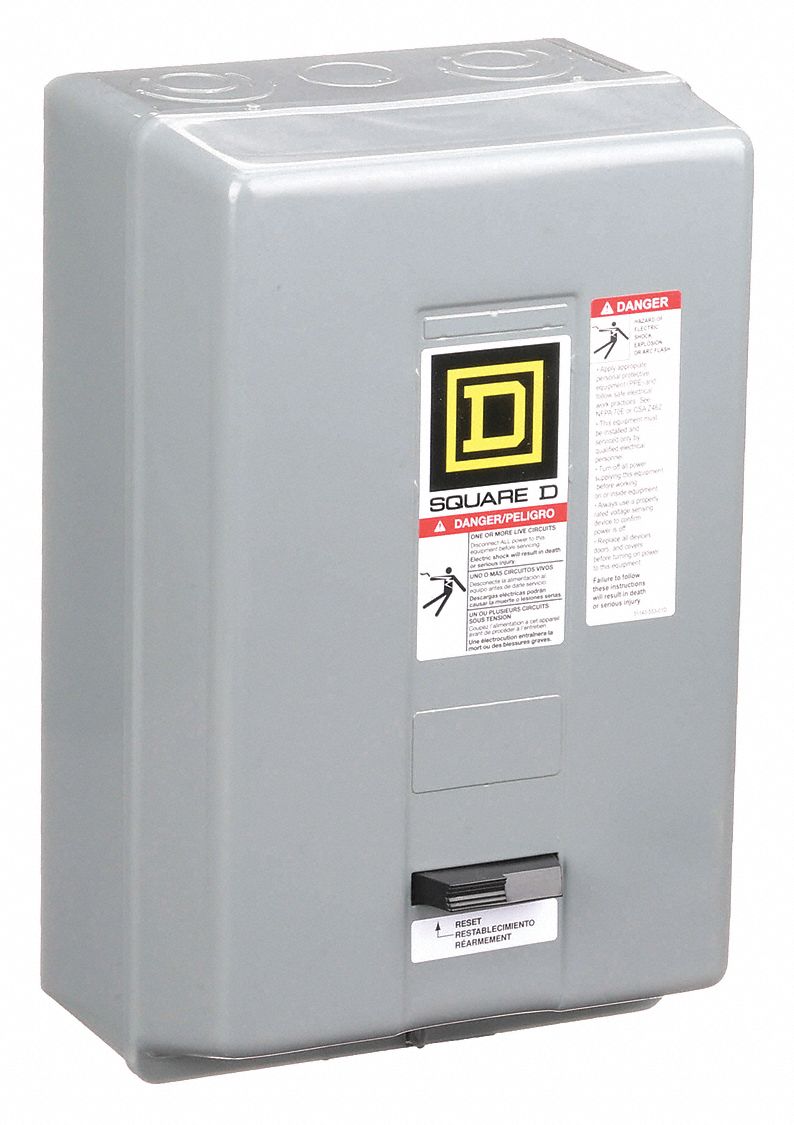

The SQUARE D Magnetic Motor Starter is an enclosed non-reversing starter with thermal overloads, featuring three poles, NEMA Size 2, and a 45 A rating. It operates with a 208V AC coil voltage and three-phase power, using screw clamp terminals for connection. This unit requires three melting alloy thermal units (not included) and includes no auxiliary contacts, operator controls, or pilot light.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 2, 45 A |
| Brand | SQUARE D |
| Phase | Three |
| Poles | 3 |
| AC Coil | 208V |
| Operator | None |
| Coil Voltage | 208V AC |
| Operator Controls | None |
| Includes Pilot Light | No |
| Thermal Units Required | 3 Melting Alloy Units (Not Included) |
| Manufacturer Part Number | 8536SDG1V08 |
| Terminal Connection Type | Screw Clamp Terminals |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
