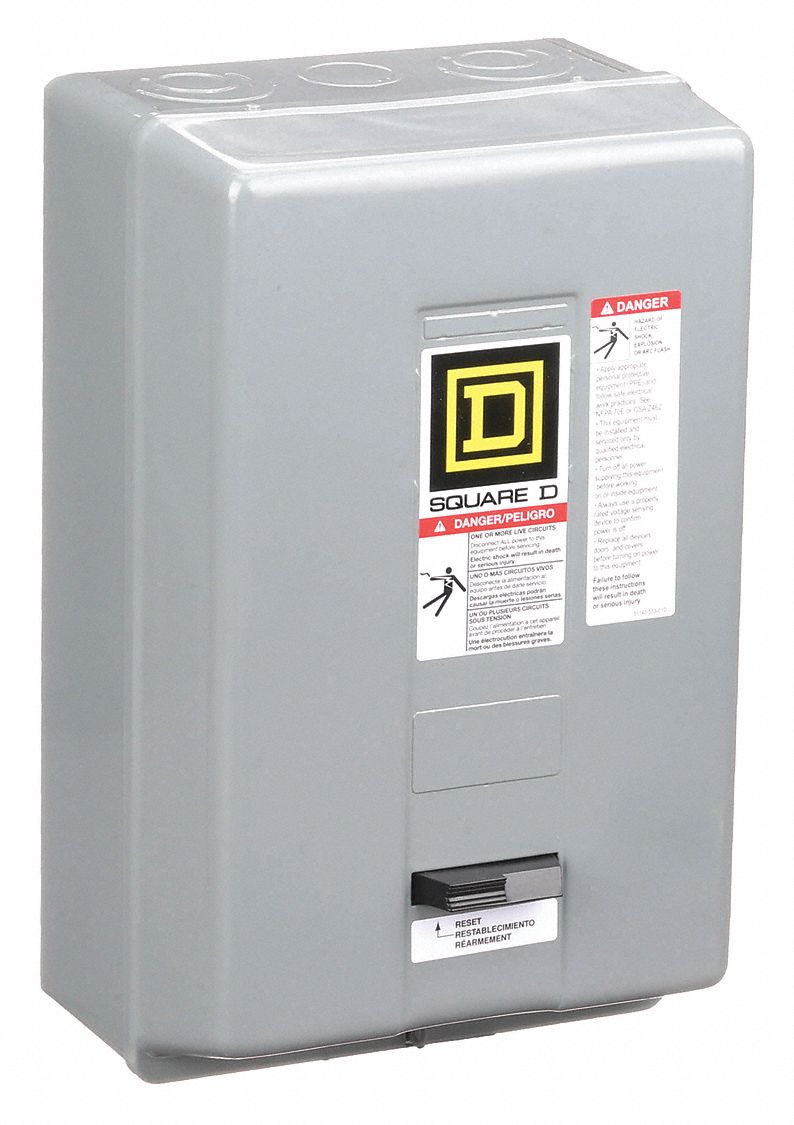

Square D 3G-OTH-41532 — Technical Specifications
The SQUARE D Magnetic Motor Starter is a non-reversing, enclosed starter with thermal overloads, designed for three-phase applications. This NEMA Size 2 unit features a 480V AC coil, 45 A rating, and screw clamp terminals, with no operator controls, pilot light, or auxiliary contacts included. It requires three melting alloy thermal units (not included) for overload protection.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 2, 45 A |
| Brand | SQUARE D |
| Phase | Three |
| Poles | 3 |
| AC Coil | 480V |
| Operator | None |
| Coil Voltage | 480V AC |
| Operator Controls | None |
| Includes Pilot Light | No |
| Thermal Units Required | 3 Melting Alloy Units (Not Included) |
| Manufacturer Part Number | 8536SDG1V06 |
| Terminal Connection Type | Screw Clamp Terminals |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
