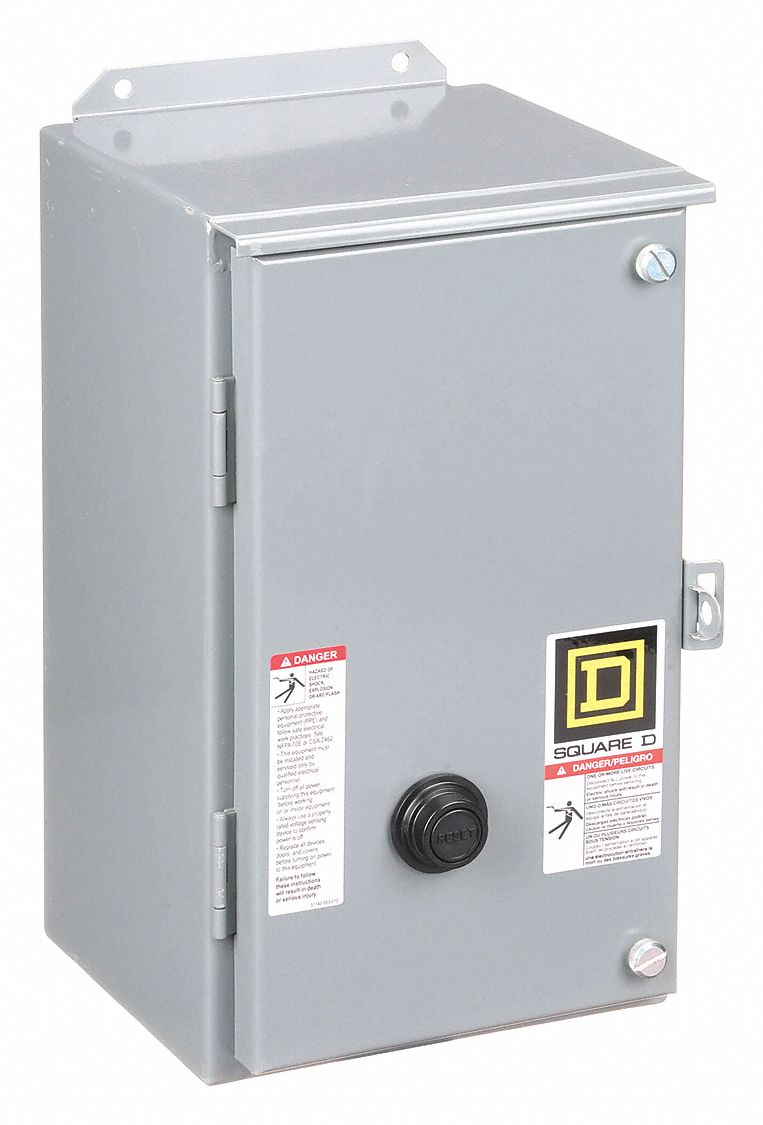

Square D 3G-OTH-42120 — Technical Specifications
The SQUARE D Magnetic Motor Starter is a non-reversing, enclosed starter with thermal overloads, designed for three-phase applications. This NEMA Size 2 unit features a 45 A rating and a 110/120V AC coil, with screw clamp terminals for secure wiring. It requires three melting alloy thermal units (not included) and includes no operator controls, pilot light, or auxiliary contacts.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 2, 45 A |
| Brand | SQUARE D |
| Phase | Three |
| Poles | 3 |
| AC Coil | 120V |
| Operator | None |
| Coil Voltage | 110/120V AC |
| Operator Controls | None |
| Includes Pilot Light | No |
| Thermal Units Required | 3 Melting Alloy Units (Not Included) |
| Manufacturer Part Number | 8536SDA1V02S |
| Terminal Connection Type | Screw Clamp Terminals |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
