Square D 3G-OTH-40629 — Technical Specifications

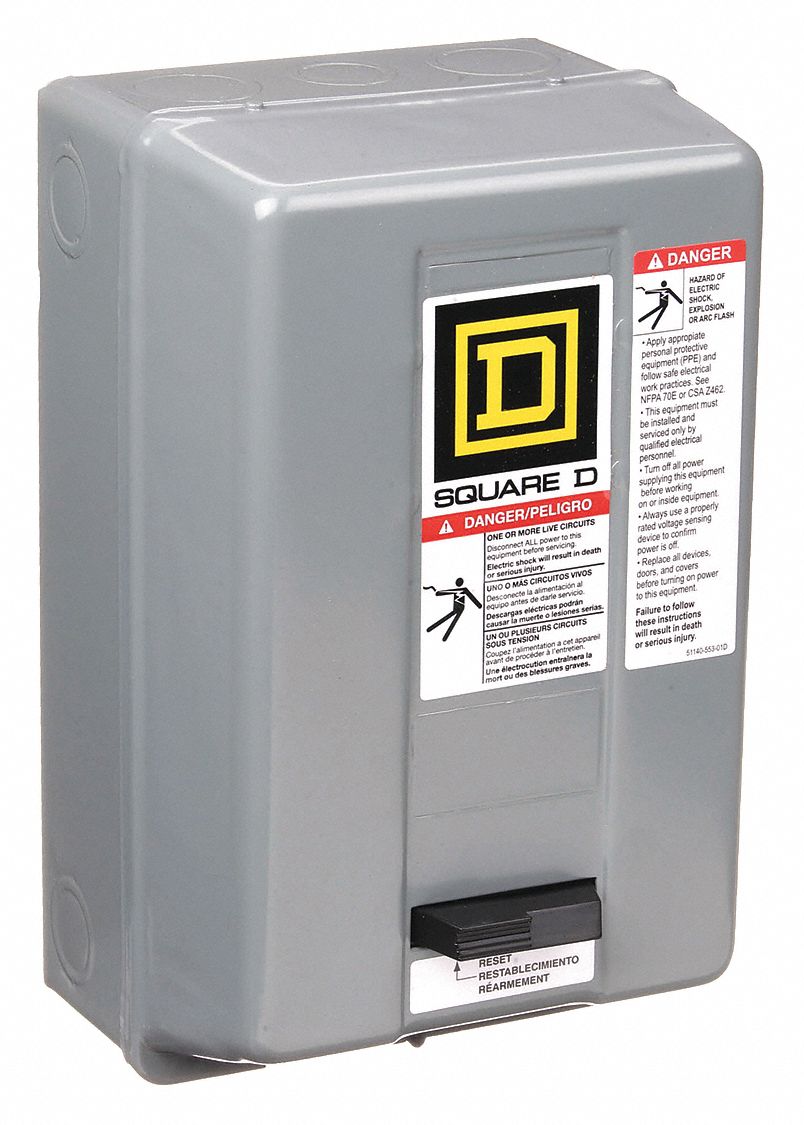

The SQUARE D Magnetic Motor Starter is an enclosed non-reversing starter with thermal overloads, part number 8536SCG3V02S. It is a three-phase, NEMA Size 1 unit rated at 27 A with a 110/120V AC coil voltage. This starter features screw clamp terminals and requires three melting alloy thermal units (not included) for overload protection. It includes no operator controls, pilot light, or auxiliary contacts.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 1, 27 A |
| Brand | SQUARE D |
| Phase | Three |
| Poles | 3 |
| AC Coil | 120V |
| Operator | None |
| Coil Voltage | 110/120V AC |
| Operator Controls | None |
| Includes Pilot Light | No |
| Thermal Units Required | 3 Melting Alloy Units (Not Included) |
| Manufacturer Part Number | 8536SCG3V02S |
| Terminal Connection Type | Screw Clamp Terminals |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
