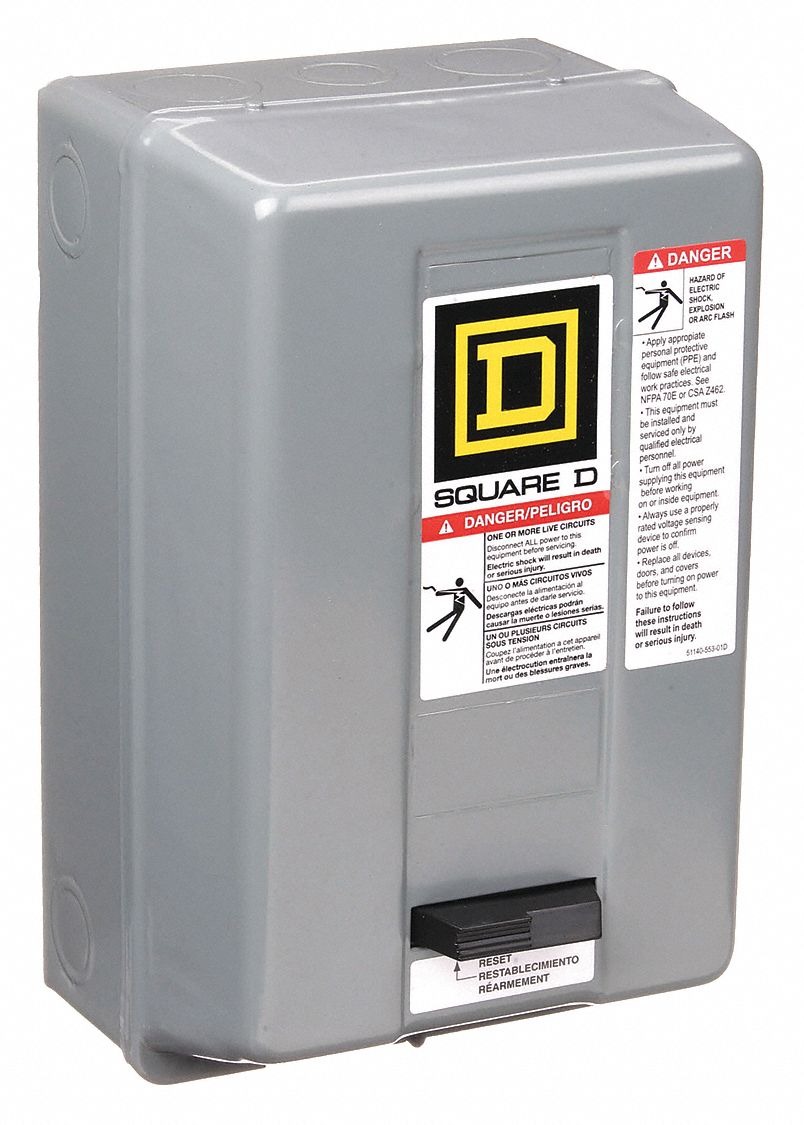

Square D 3G-OTH-41818 — Technical Specifications
The SQUARE D Magnetic Motor Starter is an enclosed non-reversing starter with thermal overloads, NEMA Size 1, 2 poles, 27 A, and a 220/240V AC coil (MPN 8536SCG1V03). It is a single-phase unit with screw clamp terminals, no operator controls, no pilot light, and no auxiliary contacts. One melting alloy thermal unit (not included) is required for overload protection.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 1, 27 A |
| Brand | SQUARE D |
| Phase | Single |
| Poles | 2 |
| AC Coil | 240V |
| Operator | None |
| Coil Voltage | 220/240V AC |
| Operator Controls | None |
| Includes Pilot Light | No |
| Thermal Units Required | 1 Melting Alloy Unit (Not Included) |
| Manufacturer Part Number | 8536SCG1V03 |
| Terminal Connection Type | Screw Clamp Terminals |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
