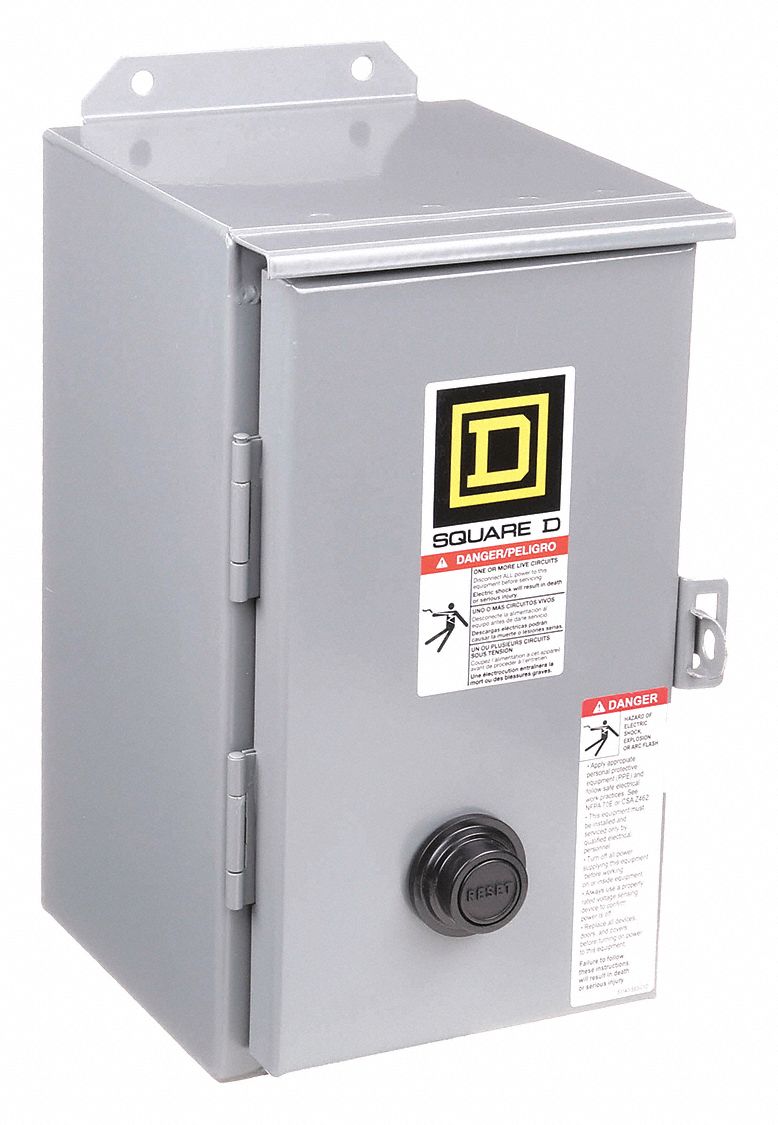

Square D 3G-OTH-40722 — Technical Specifications
The SQUARE D Magnetic Motor Starter is an enclosed non-reversing starter with thermal overloads, three poles, NEMA Size 1, and a 27 A rating. It operates with a 480V AC coil, three-phase power, and screw clamp terminals. This unit requires three melting alloy thermal units (not included) and has no operator, operator controls, pilot light, or auxiliary contacts.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 1, 27 A |
| Brand | SQUARE D |
| Phase | Three |
| Poles | 3 |
| AC Coil | 480V |
| Operator | None |
| Coil Voltage | 480V AC |
| Operator Controls | None |
| Includes Pilot Light | No |
| Thermal Units Required | 3 Melting Alloy Units (Not Included) |
| Manufacturer Part Number | 8536SCA3V06 |
| Terminal Connection Type | Screw Clamp Terminals |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
