Square D 3G-OTH-41943 — Technical Specifications

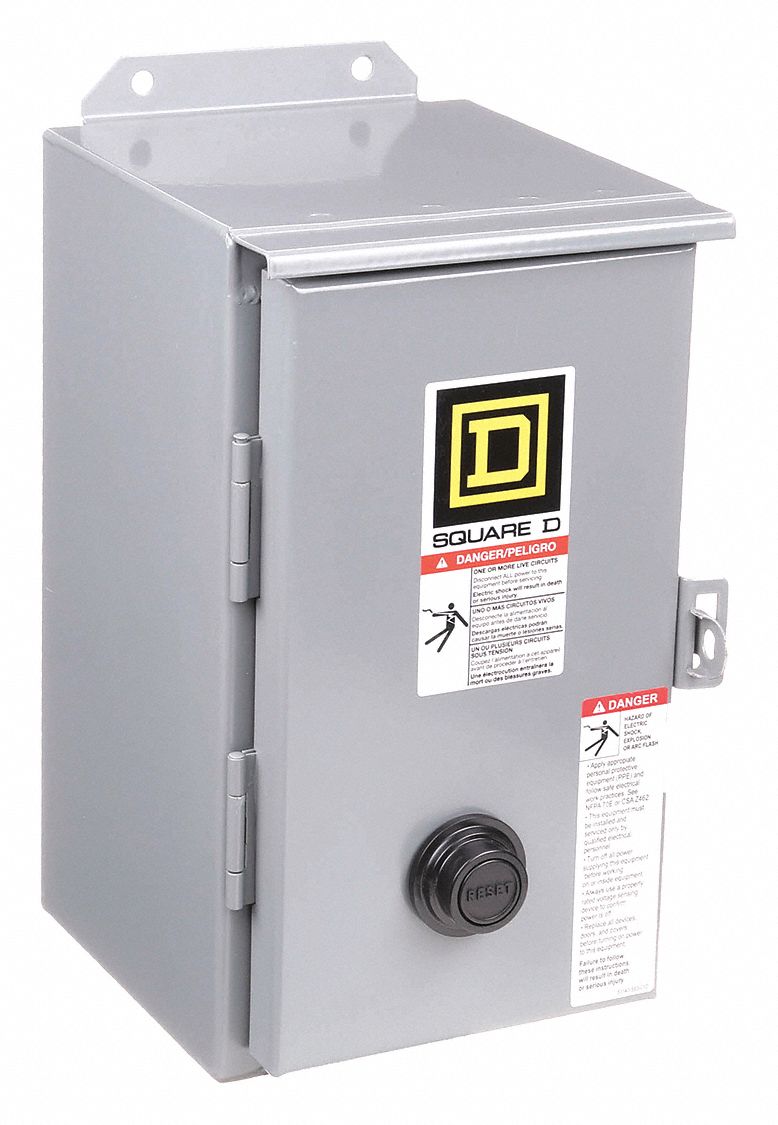

The SQUARE D Magnetic Motor Starter is an enclosed non-reversing starter with thermal overloads, featuring a 220/240V AC coil voltage and three-phase operation. This NEMA Size 1 unit (MPN 8536SCA3V03) is rated at 27 A and includes screw clamp terminals, with no operator controls, pilot light, or auxiliary contacts. Three melting alloy thermal units are required but not included.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 1, 27 A |
| Brand | SQUARE D |
| Phase | Three |
| Poles | 3 |
| AC Coil | 240V |
| Operator | None |
| Coil Voltage | 220/240V AC |
| Operator Controls | None |
| Includes Pilot Light | No |
| Thermal Units Required | 3 Melting Alloy Units (Not Included) |
| Manufacturer Part Number | 8536SCA3V03 |
| Terminal Connection Type | Screw Clamp Terminals |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
