Square D 3G-OTH-40687 — Technical Specifications

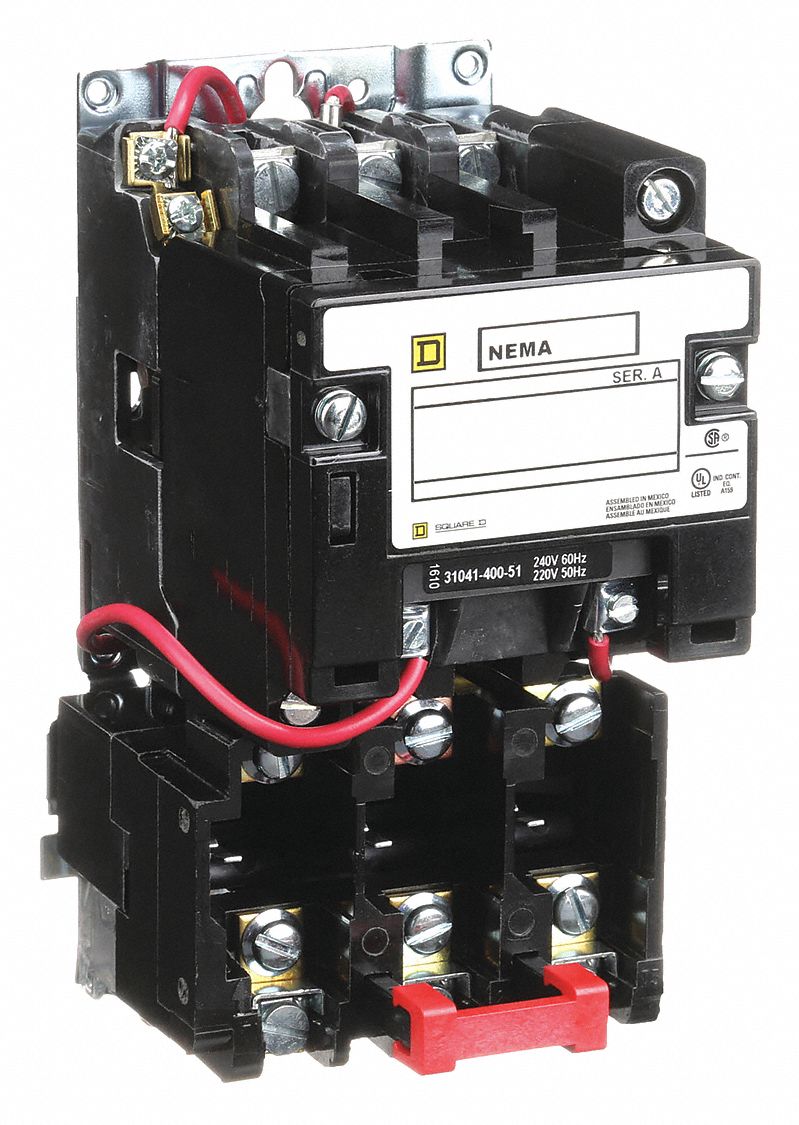

The SQUARE D Magnetic Motor Starter is a non-reversing starter with thermal overloads, designed for three-phase applications. This NEMA Size 0 unit features a 220/240V AC coil, 18 A rating, and screw clamp terminals, requiring three melting alloy thermal units (not included). It includes no operator, pilot light, or auxiliary contacts, as specified by the OEM.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 0, 18 A |
| Brand | SQUARE D |
| Phase | Three |
| Poles | 3 |
| AC Coil | 240V |
| Operator | None |
| Coil Voltage | 220/240V AC |
| Operator Controls | None |
| Includes Pilot Light | No |
| Thermal Units Required | 3 Melting Alloy Units (Not Included) |
| Manufacturer Part Number | 8536SBO2V03 |
| Terminal Connection Type | Screw Clamp Terminals |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
