Square D 3G-OTH-40553 — Technical Specifications

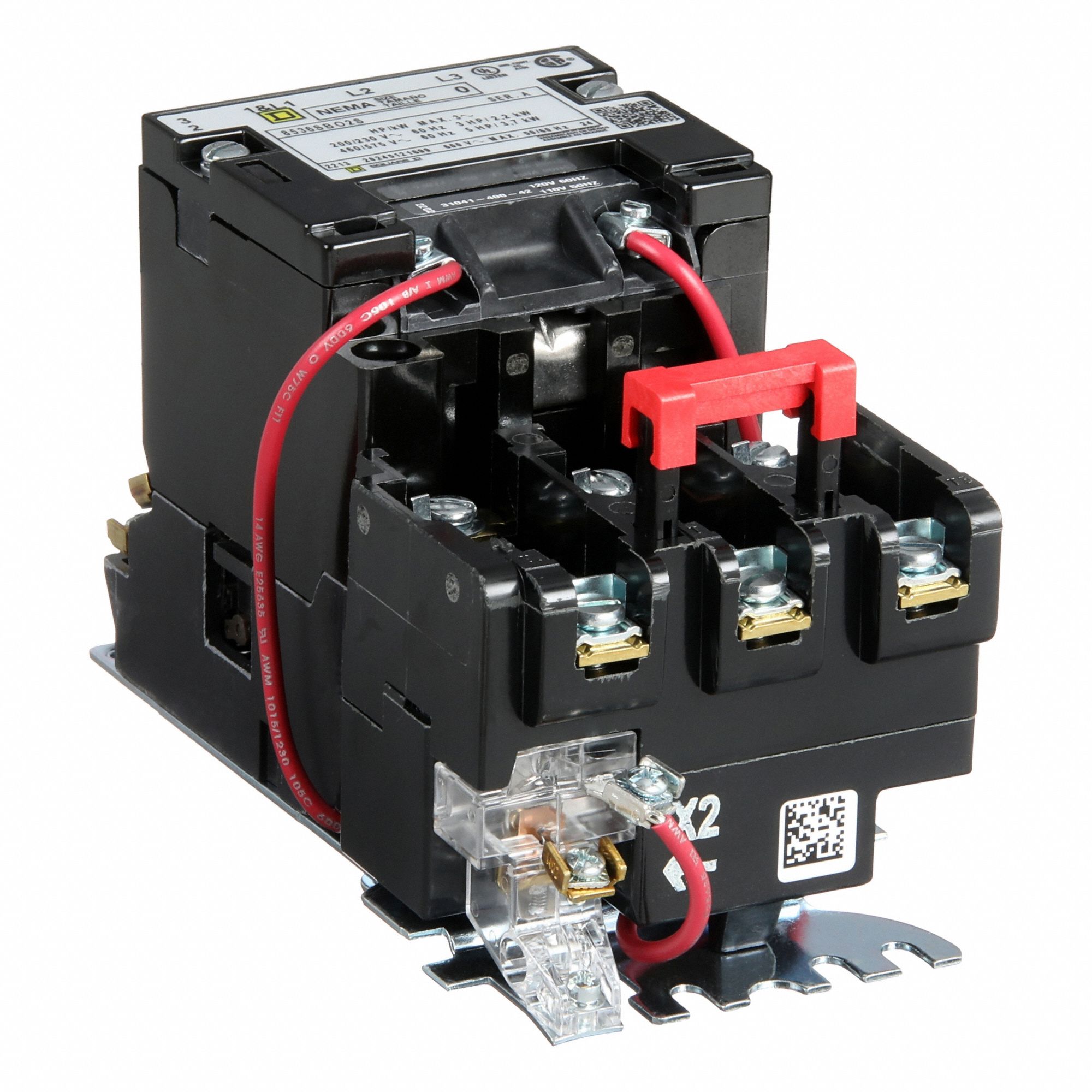

The SQUARE D Magnetic Motor Starter is a non-reversing starter with thermal overloads, designed for three-phase applications. This NEMA Size 0 unit features a 110/120V AC coil, 18 A rating, and screw clamp terminals. It requires three melting alloy thermal units (not included) and includes no auxiliary contacts, operator controls, or pilot light.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 0, 18 A |
| Brand | SQUARE D |
| Phase | Three |
| Poles | 3 |
| AC Coil | 120V |
| Operator | None |
| Coil Voltage | 110/120V AC |
| Operator Controls | None |
| Includes Pilot Light | No |
| Thermal Units Required | 3 Melting Alloy Units (Not Included) |
| Manufacturer Part Number | 8536SBO2V02S |
| Terminal Connection Type | Screw Clamp Terminals |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
