Square D 3G-OTH-28453 — Technical Specifications

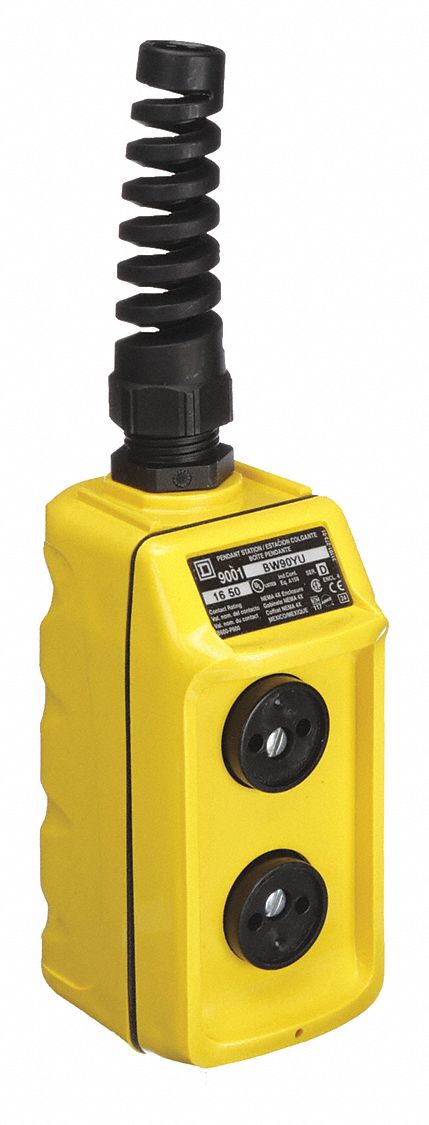

The SQUARE D Pendant Control Station (SKU 12N832, MPN 9001BW90YU) is a push-button pendant from the 9001BW Series with a momentary/momentary action and a dead-end hub style. It features two push buttons, a thermoplastic enclosure, and no legend, with AC contact rating of 1.5 A @ 240 V and DC contact rating of 0.55 A @ 240 V.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 2NO, No Legend, NEMA 4, (2) Push Buttons |
| Brand | SQUARE D |
| Action | Momentary/Momentary |
| Legend | No Legend |
| Series | 9001BW |
| Hub Style | Dead-End |
| AC Contact Rating | 1.5 A @ 240 V |
| DC Contact Rating | 0.55 A @ 240 V |
| Enclosure Material | Thermoplastic |
| Operator Configuration | (2) Push Buttons |
| Manufacturer Part Number | 9001BW90YU |
| Operator Configuration Type | (2) Push Buttons |
