Souriau 3G-OTH-08502 — Technical Specifications

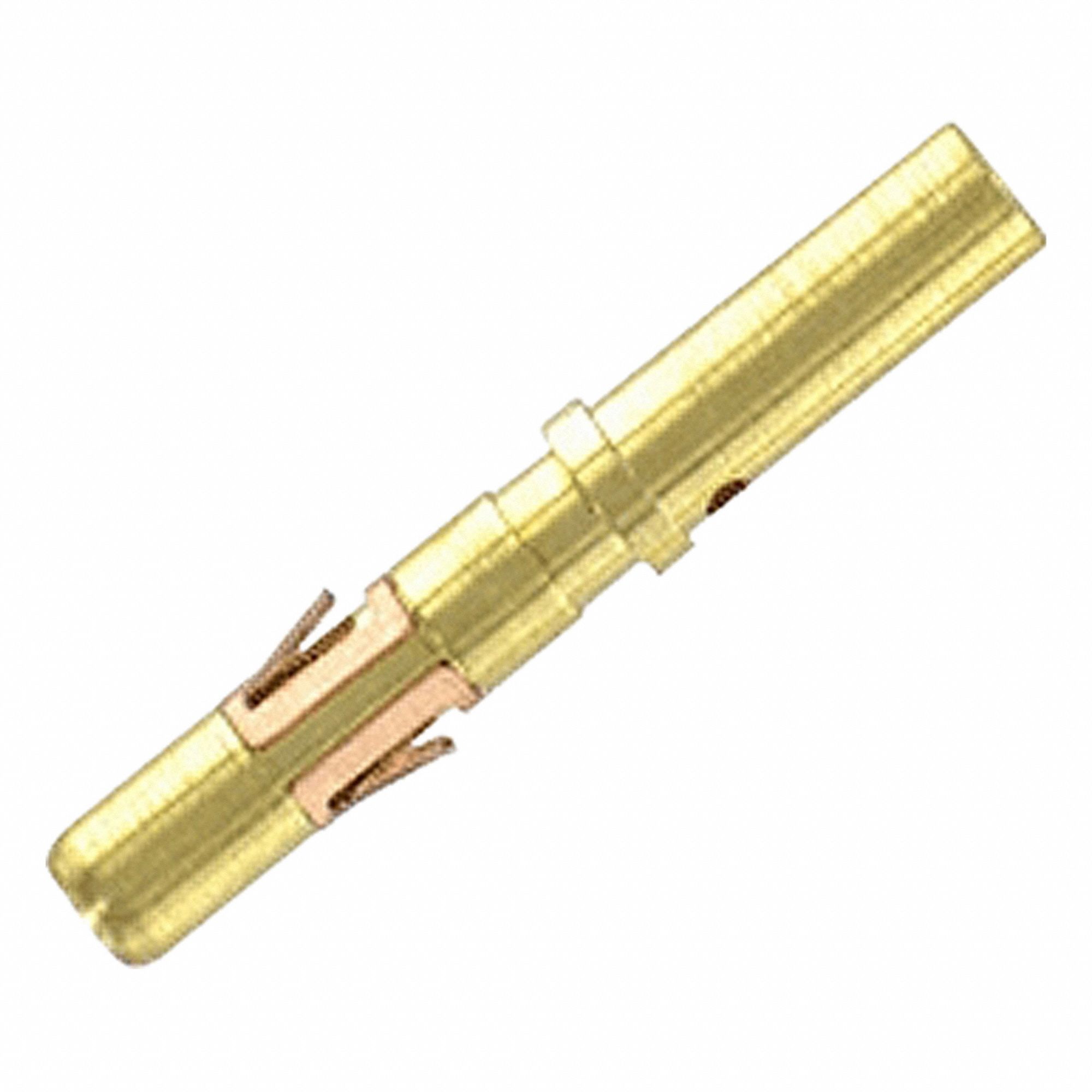

The SOURIAU Crimp Contact: Machined is a #16 female contact for Trim Trio Circular Connectors, compatible with the UTL series. It features a copper alloy pole with gold plating, accepts 16 to 14 AWG (1.5-2.5 mm²) wire, and uses a crimp connection. This loose contact is rated for 750V AC.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 750V |
| Type | #16, Female, 16 to 14 AWG, Max 3.20 mm2 Insulator, Crimp |
| Brand | SOURIAU |
| Wire Size | 16 to 14 AWG |
| Contact Size | #16 |
| Pole Material | Copper Alloy |
| Contact Gender | Female |
| Connection Type | Crimp |
| Wire Size (Mm2) | 1.5-2.5 mm2 |
| Plating Material | Gold |
| Compatible With Series | UTL |
| Product Packaging Form | Loose Contact |
| Manufacturer Part Number | RC14M30K |
