Souriau 3G-OTH-08692 — Technical Specifications

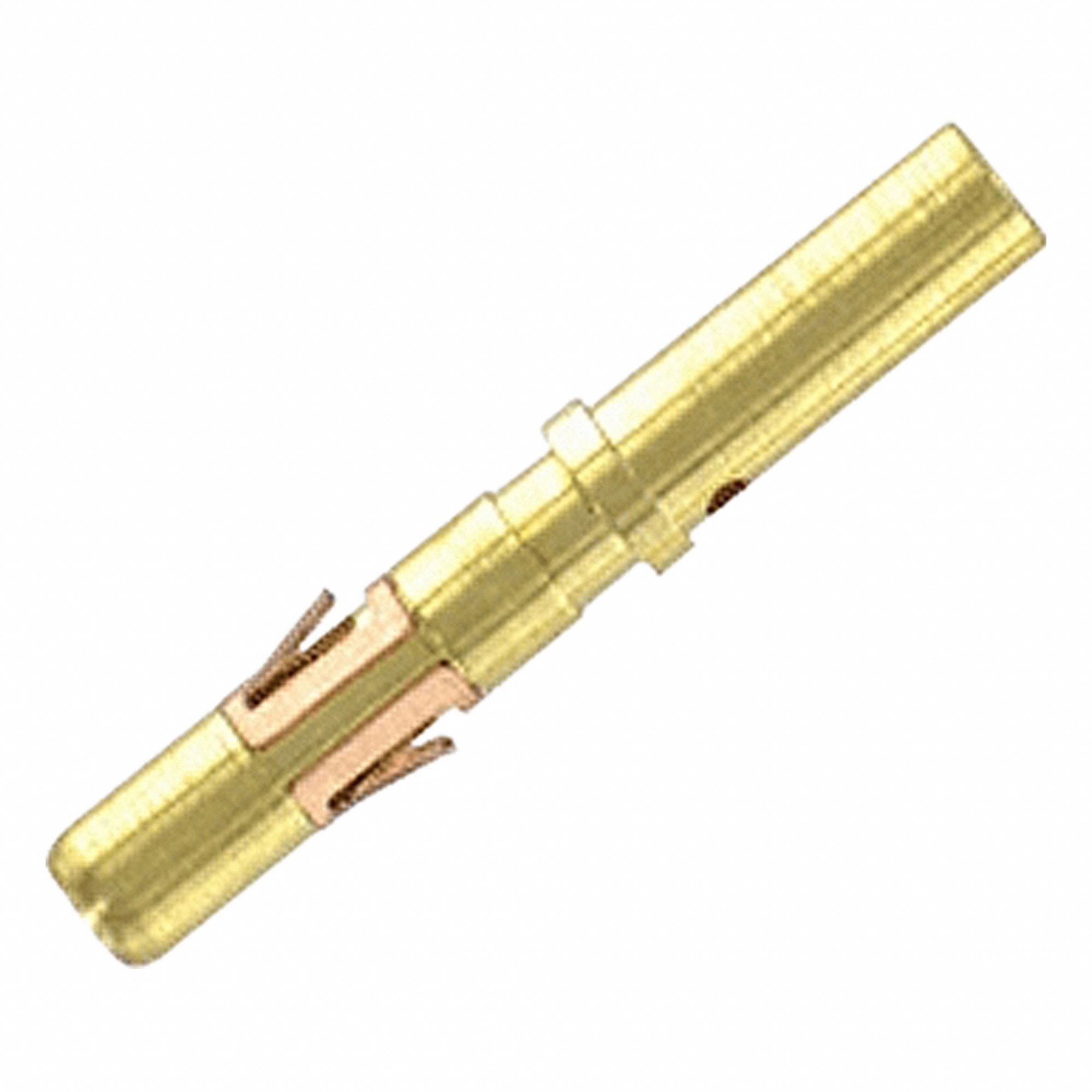

The SOURIAU Crimp Contact: Machined is a #16 female contact for Trim Trio Circular Connectors, compatible with the MBG series. It features a copper alloy pole with gold plating, supports 22 to 20 AWG (0.32-0.52 mm²) wire, and uses a crimp connection. Supplied as a loose contact, it is rated for 750V.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | #16, Female, 22 to 20 AWG, Max 2.20 mm2 Insulator, Crimp, 750V, RC |
| Brand | SOURIAU |
| Wire Size | 22 to 20 AWG |
| Contact Size | #16 |
| Pole Material | Copper Alloy |
| Contact Gender | Female |
| Connection Type | Crimp |
| Wire Size (Mm2) | 0.32-0.52 mm2 |
| Plating Material | Gold |
| Compatible With Series | MBG |
| Product Packaging Form | Loose Contact |
| Manufacturer Part Number | RC20M12K |
