Souriau 3G-OTH-08944 — Technical Specifications

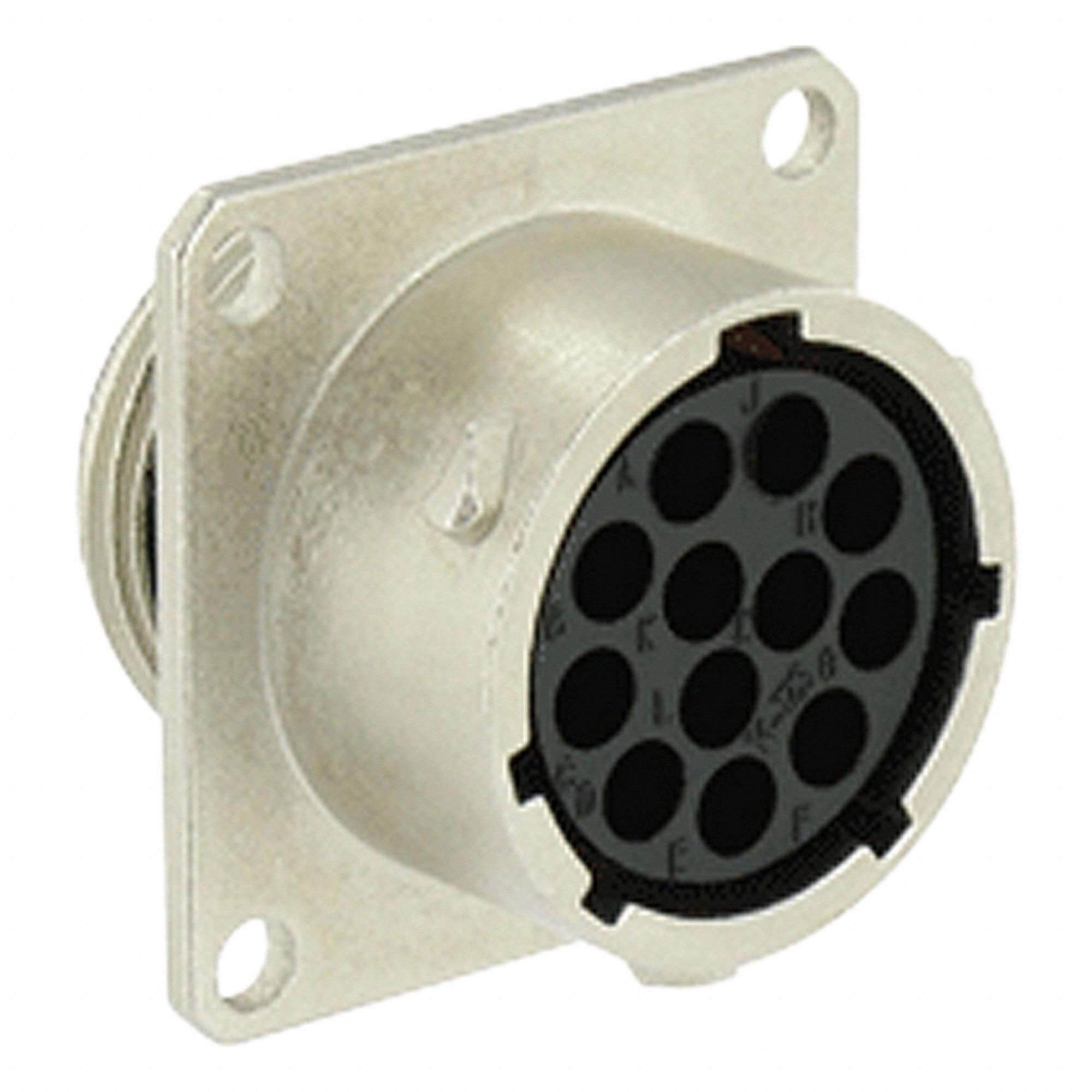

The SOURIAU Trim Trio UTO 14 is a harsh-environment circular connector from the Trim Trio UTO series, configured as a square flange receptacle with 12 female contacts. It features a 1/3 bayonet coupling, an IP69K rating, and accepts wire sizes from 30 AWG to 14 AWG. The connector is rated for 500V (CSA) and 10 A, but contacts are not included.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Square Flange Receptacle, 10 A |
| Brand | SOURIAU |
| Series | Trim Trio UTO |
| Contacts | 12 |
| IP Rating | IP69K |
| Wire Size | 30 AWG to 14 AWG |
| Coupling Type | 1/3 Bayonet |
| Contact Gender | Female |
| Voltage Rating | 500V (CSA) |
| Connector Design | Square Flange Receptacle |
| Connector Number | 1412 |
| Includes Contacts | Contacts Not Included |
| Manufacturer Part Number | UT001412SH6 |
