Souriau 3G-OTH-09621 — Technical Specifications

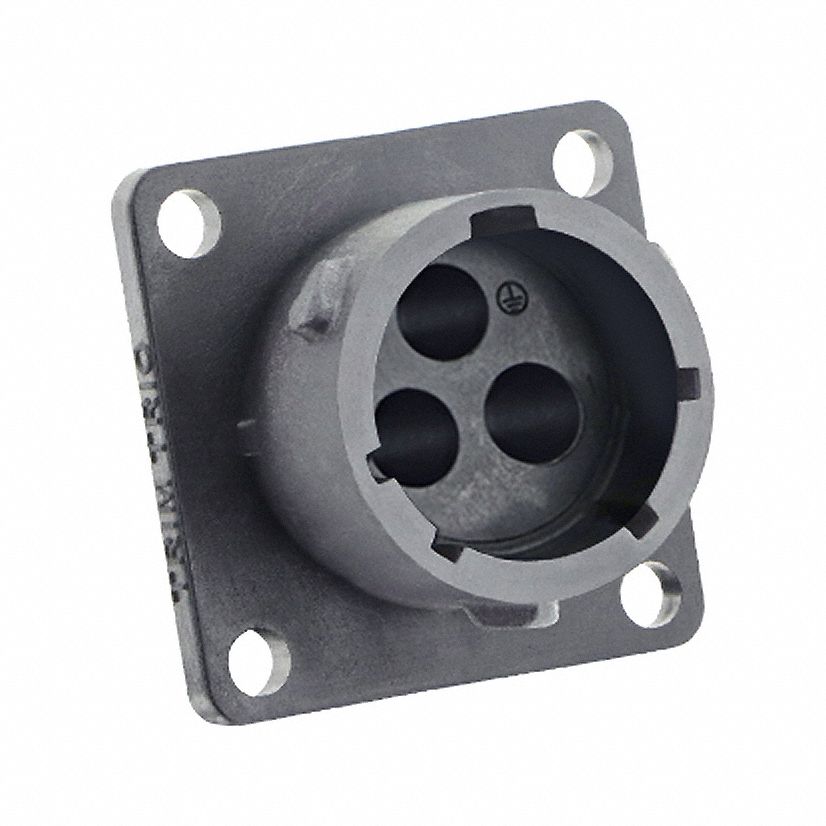

The SOURIAU Trim Trio UTSX 14 is a harsh environment circular connector from the Trim Trio UTSX series, designed as a square flange receptacle with 2 + Ground contacts rated at 44 A. It features a 1/3 bayonet coupling, IP68 rating, and accepts wire sizes from 16 AWG to 8 AWG, with a voltage rating of 600V. This male contact connector (MPN UTSX0142G1P) is supplied without contacts.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Square Flange Receptacle, 2 + Ground Contacts, 44 A |
| Brand | SOURIAU |
| Series | Trim Trio UTSX |
| IP Rating | IP68 |
| Wire Size | 16 AWG to 8 AWG |
| Coupling Type | 1/3 Bayonet |
| Contact Gender | Male |
| Voltage Rating | 600V |
| Connector Design | Square Flange Receptacle |
| Connector Number | UTSX142G1 |
| Includes Contacts | Contacts Not Included |
| Manufacturer Part Number | UTSX0142G1P |
