Souriau 3G-OTH-09479 — Technical Specifications

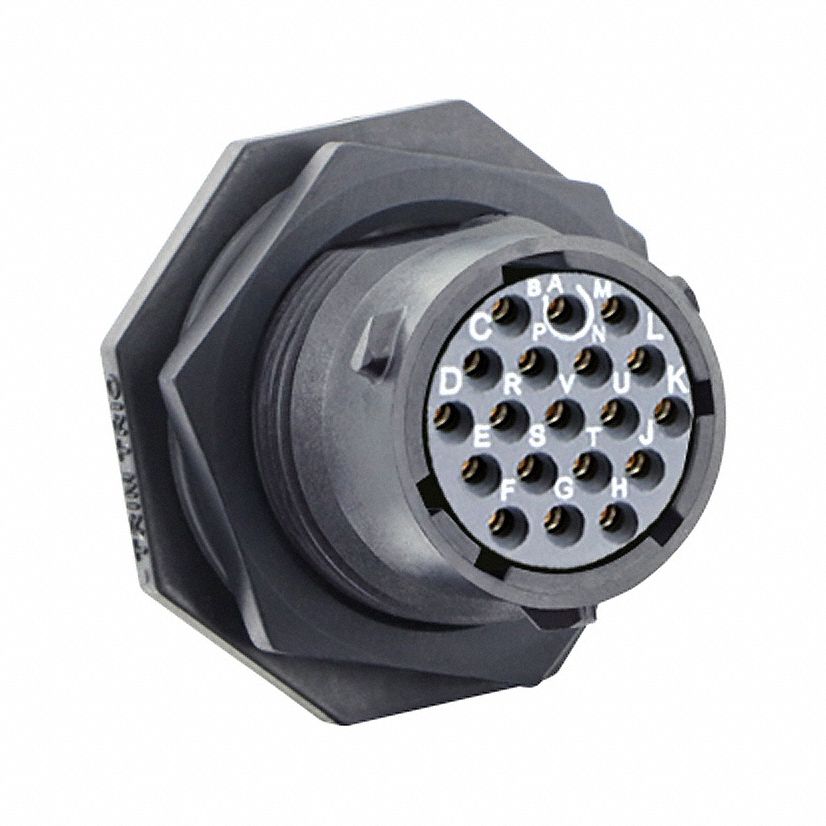

The SOURIAU Trim Trio UTSX 14 is a harsh-environment circular connector from the Trim Trio UTSX series, configured as a jam nut receptacle with 19 female contacts. It features a 1/3 bayonet coupling, an IP69K rating, and accepts 20 AWG to 18 AWG wire with solder-type contacts. The connector is rated for 250V and 4 A, and contacts are included.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Jam Nut Receptacle, 4 A, 250V |
| Brand | SOURIAU |
| Series | Trim Trio UTSX |
| Contacts | 19 |
| IP Rating | IP69K |
| Wire Size | 20 AWG to 18 AWG |
| Contact Type | Solder |
| Coupling Type | 1/3 Bayonet |
| Contact Gender | Female |
| Voltage Rating | 250V |
| Connector Design | Jam Nut Receptacle |
| Connector Number | UTSX14E19 |
| Includes Contacts | Contacts Included |
| Manufacturer Part Number | UTSX714E19S |
