Souriau 3G-OTH-09465 — Technical Specifications

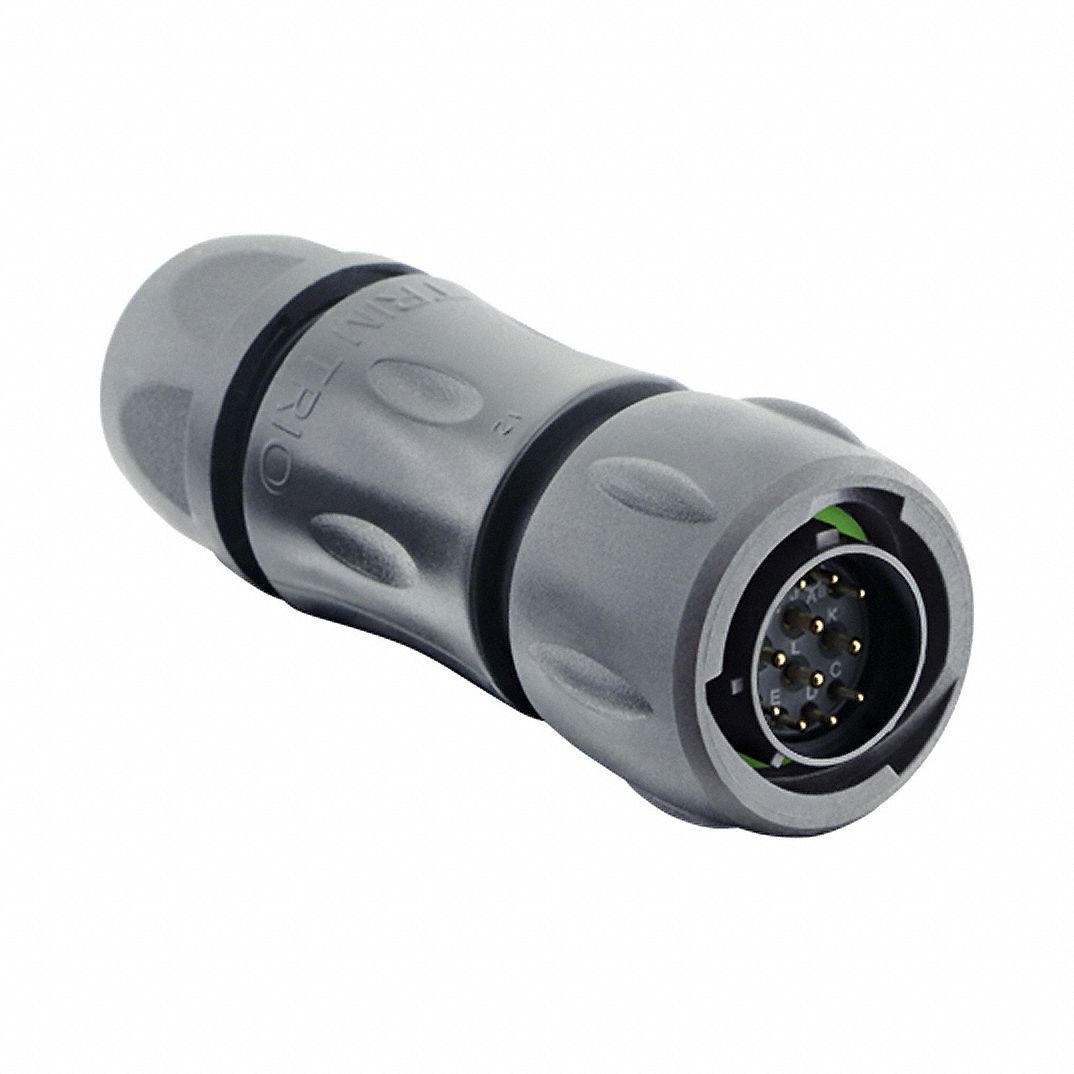

The SOURIAU Trim Trio UTSX 14 is a harsh environment circular connector from the Trim Trio UTSX series, designed as a plug with cable gland. It features 12 male contacts with solder termination, a 1/3 bayonet coupling, and an IP68 rating. The connector supports wire sizes from 20 AWG to 18 AWG and is rated for 250V and 10A, with contacts included.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Plug with Cable Gland, 10 A, 250V |
| Brand | SOURIAU |
| Series | Trim Trio UTSX |
| Contacts | 12 |
| IP Rating | IP68 |
| Wire Size | 20 AWG to 18 AWG |
| Contact Type | Solder |
| Coupling Type | 1/3 Bayonet |
| Contact Gender | Male |
| Voltage Rating | 250V |
| Connector Design | Plug with Cable Gland |
| Connector Number | UTSX14E12 |
| Includes Contacts | Contacts Included |
| Manufacturer Part Number | UTSX6JC14E12P |
