Souriau 3G-OTH-09645 — Technical Specifications

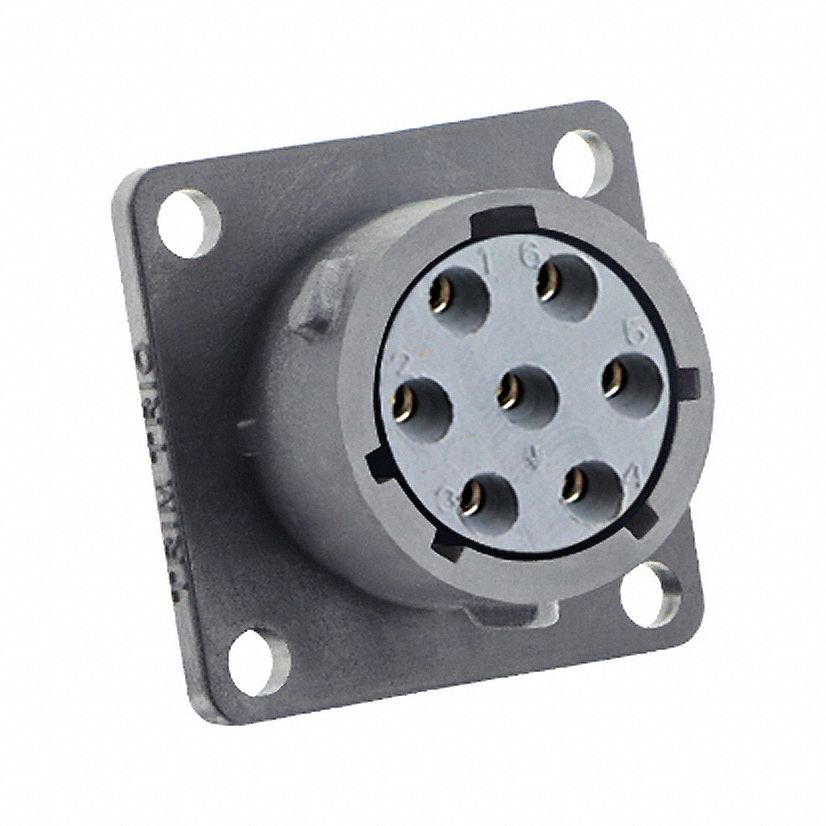

The SOURIAU Trim Trio UTSX 14 is a harsh environment circular connector from the Trim Trio UTSX series, designed as a square flange receptacle with 7 female PCB contacts. It features a 1/3 bayonet coupling, an IP68 rating, a voltage rating of 600V, and accepts wire sizes from 0.318 in to 0.405 in socket contacts. Contacts are included with the connector.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Square Flange Receptacle, 12 A, 600V |
| Brand | SOURIAU |
| Series | Trim Trio UTSX |
| Contacts | 7 |
| IP Rating | IP68 |
| Wire Size | 0.318 in to 0.405 in Socket Contact |
| Contact Type | PCB |
| Coupling Type | 1/3 Bayonet |
| Contact Gender | Female |
| Voltage Rating | 600V |
| Connector Design | Square Flange Receptacle |
| Connector Number | UTSX14D7 |
| Includes Contacts | Contacts Included |
| Manufacturer Part Number | UTSX014D7S |
