Souriau 3G-OTH-09531 — Technical Specifications

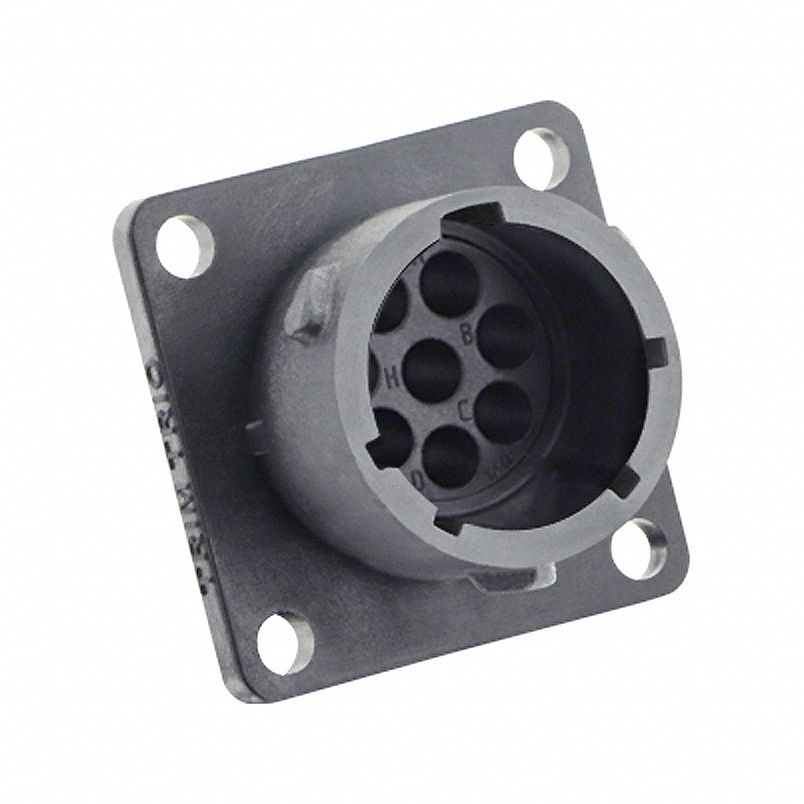

The SOURIAU Trim Trio UTSX 12 is a harsh environment circular connector from the Trim Trio UTSX series, configured as a square flange receptacle with 8 male contacts. It features a 1/3 bayonet coupling, an IP68 rating, and a voltage rating of 500V, supporting wire sizes from 30 AWG to 14 AWG. Contacts are not included.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Square Flange Receptacle, 10 A, 500V |
| Brand | SOURIAU |
| Series | Trim Trio UTSX |
| Contacts | 8 |
| IP Rating | IP68 |
| Wire Size | 30 AWG to 14 AWG |
| Coupling Type | 1/3 Bayonet |
| Contact Gender | Male |
| Voltage Rating | 500V |
| Connector Design | Square Flange Receptacle |
| Connector Number | UTSX128 |
| Includes Contacts | Contacts Not Included |
| Manufacturer Part Number | UTSX0128P |
