Souriau 3G-OTH-09515 — Technical Specifications

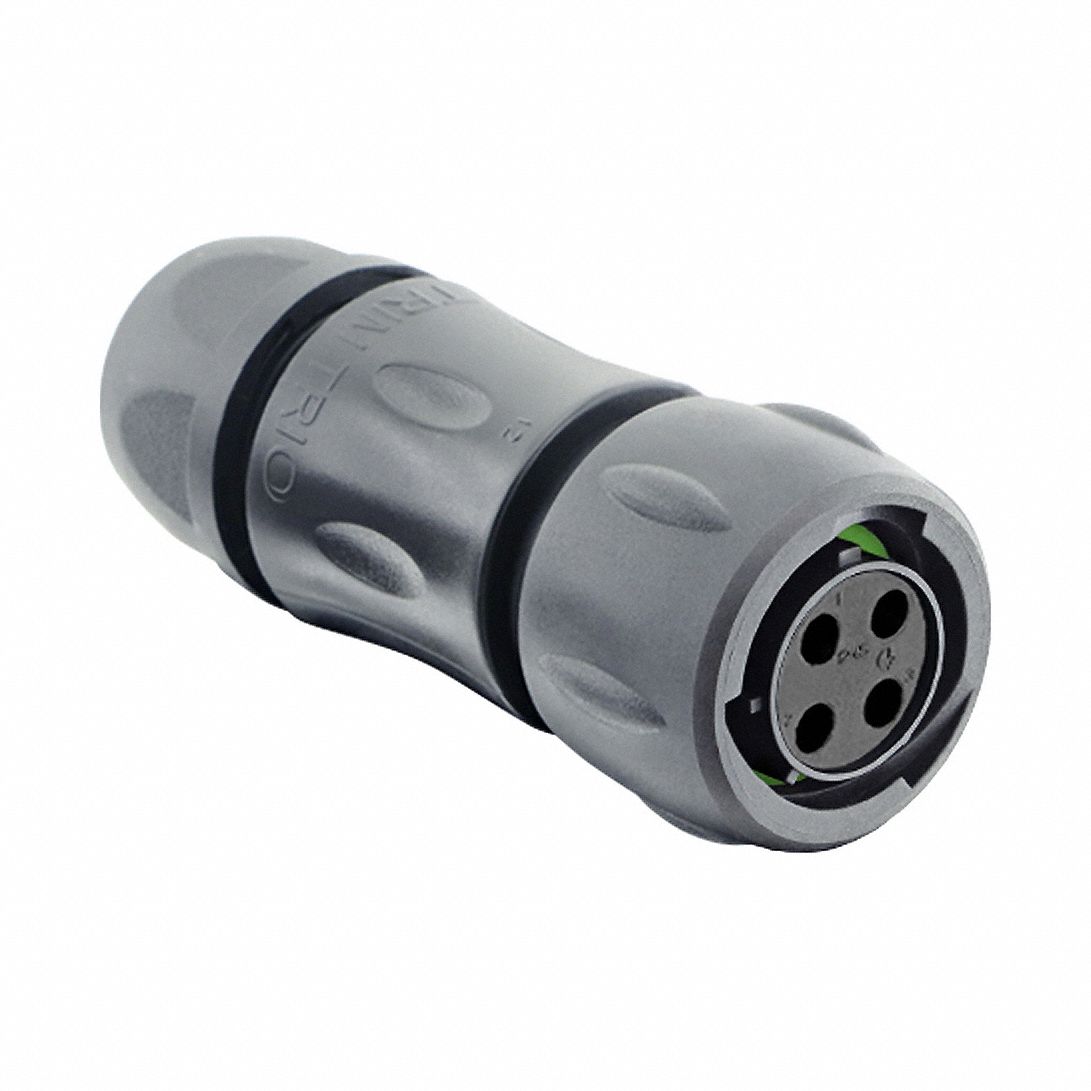

The SOURIAU Trim Trio UTSX 12 is a harsh environment circular connector from the Trim Trio UTSX series, designed as a plug with cable gland. It features an IP69K rating, a 1/3 bayonet coupling type, female contacts, and a voltage rating of 500V, accommodating wire sizes from 30 AWG to 14 AWG. Contacts are not included.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Plug with Cable Gland, 16 A, 500V |
| Brand | SOURIAU |
| Series | Trim Trio UTSX |
| Contacts | 4 |
| IP Rating | IP69K |
| Wire Size | 30 AWG to 14 AWG |
| Coupling Type | 1/3 Bayonet |
| Contact Gender | Female |
| Voltage Rating | 500V |
| Connector Design | Plug with Cable Gland |
| Connector Number | UTSX124 |
| Includes Contacts | Contacts Not Included |
| Manufacturer Part Number | UTSX6JC124S |
