Soler & Palau 3G-OTH-79366 — Technical Specifications

Name: Soler & Palau 3G-OTH-79366 In-Line Duct Fan: 754 cfm Max., 10 in Duct, 115 W, 120V AC, 1 Ph, IP44, Steel (MPN TD-250). Key specifications — Includes: Mounting Bracket; Brand: SOLER & PALAU; Speed Controllable: Yes; High-Efficiency Motor: No; Nameplate Voltage: 120V AC; Number of Speeds: 2; Airflow @ 0.000 in SP - Range: 750 to 1,500 cfm; High-Efficiency Motor_Broad: Standard-Efficiency Motor.
Brand: Soler & Palau

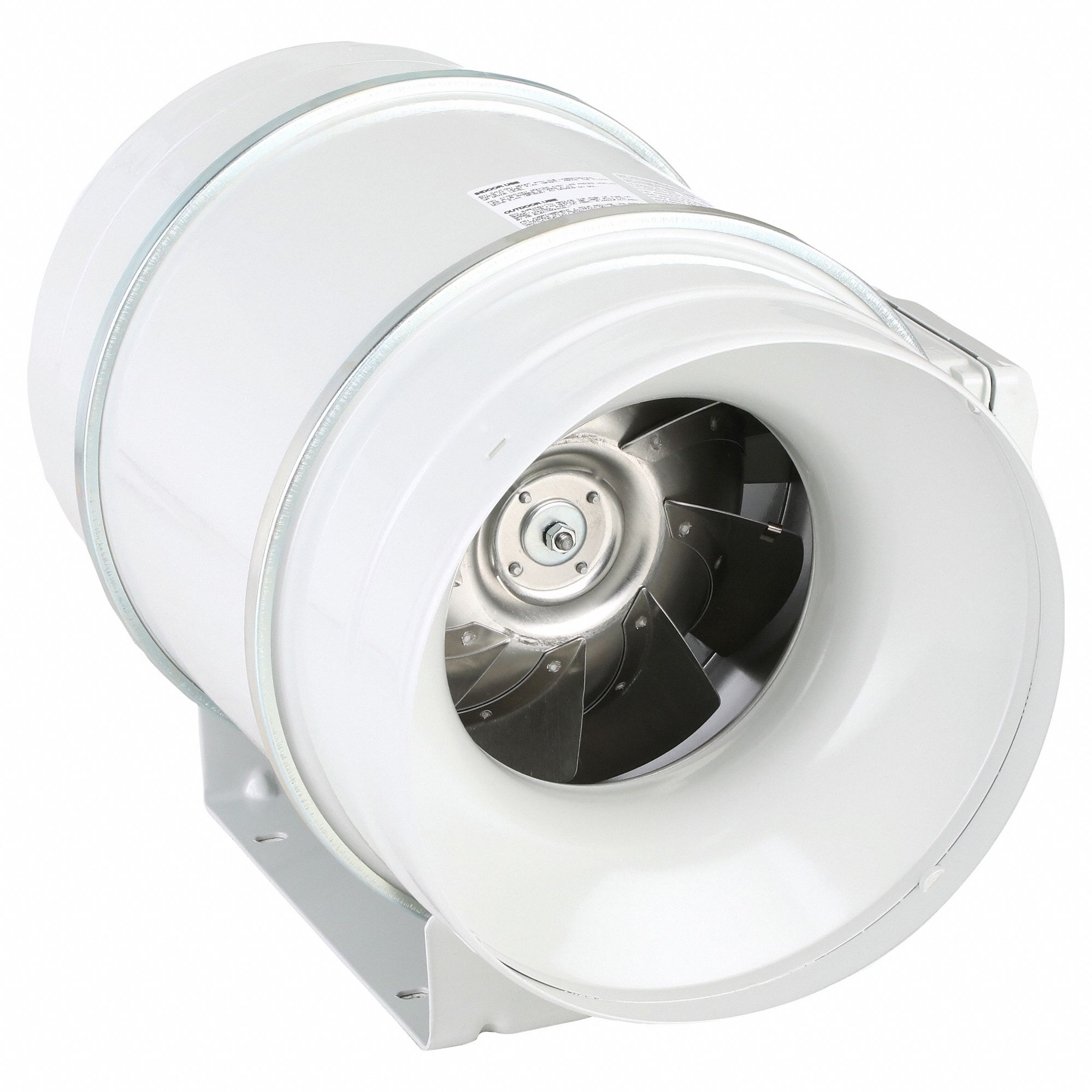

The SOLER & PALAU TD-250 is a general purpose inline duct fan with a maximum airflow of 754 cfm, designed for 10-inch ducts. It operates on 120V AC, single-phase power with 115 W consumption, features two speeds, and is speed controllable. The unit includes a mounting bracket, has a steel construction with an IP44 rating, and is equipped with a standard-efficiency motor.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	SOLER & PALAU
Includes	Mounting Bracket
Number Of Speeds	2
Nameplate Voltage	120V AC
Speed Controllable	Yes
High-Efficiency Motor	No
Manufacturer Part Number	TD-250
High-Efficiency Motor Broad	Standard-Efficiency Motor
Airflow @ 0.000 In SP - Range	750 to 1,500 cfm
