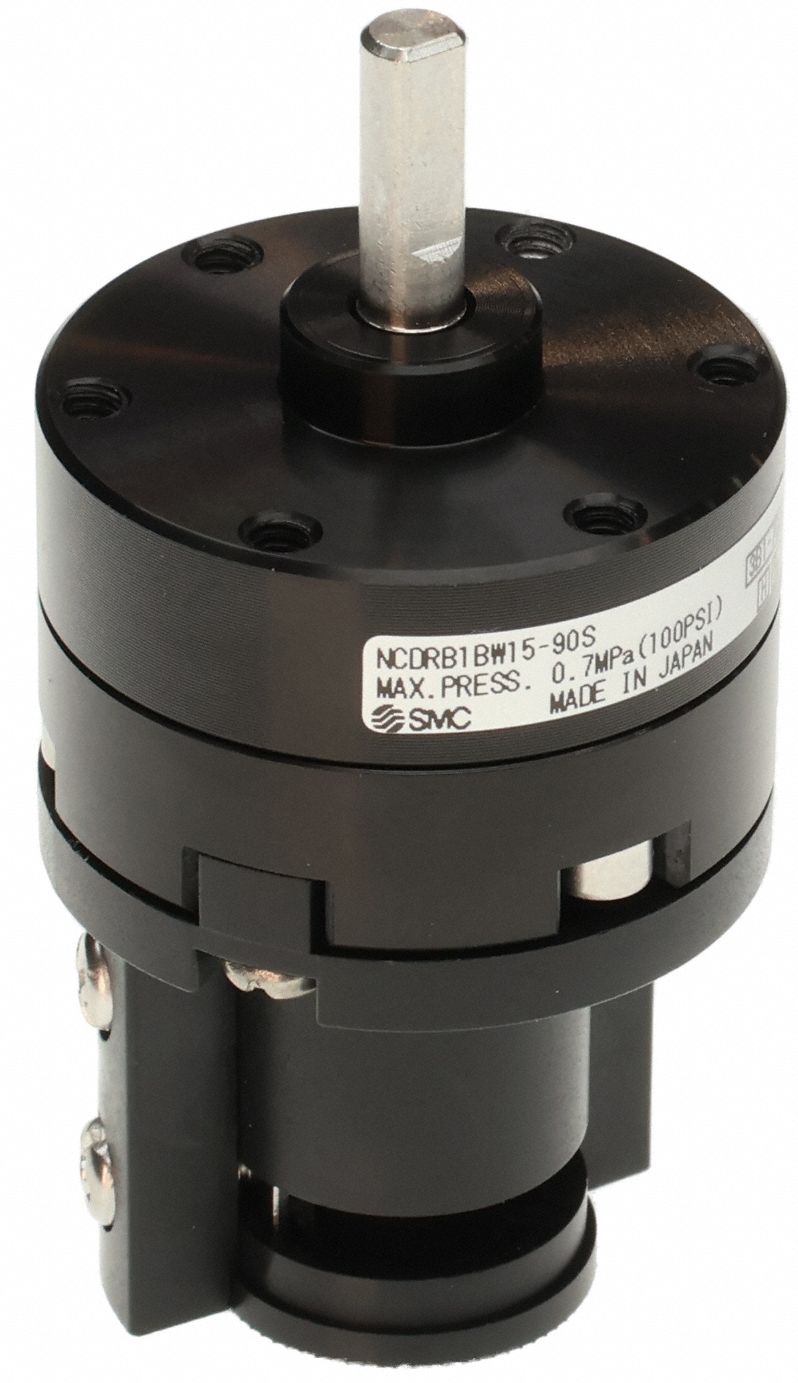

Smc 3G-OTH-161085 — Technical Specifications

Name: Smc 3G-OTH-161085 SMC Rotary Air Actuator: Single Vane Actuator, 90° Rotation Angle, 4 in-lb Output Torque, #10-32 UNF (MPN NCDRB1BW15-90S). Key specifications — attr293632: NCDRB1BW15-90S; attr294754: SMC; attr947098: Magnetic Piston; attr947108: Basic; attr947133: Metric; attr1108504: Side Ported.
Brand: Smc

The SMC NCDRB1BW15-90S is a single vane rotary air actuator, part of SMC's vane-style rotary actuator line. This basic, metric model features a magnetic piston and side ported configuration, delivering a 90° rotation angle with 4 in-lb output torque and #10-32 UNF ports.

View Product & Quote

Technical Specifications

Parameter	Value
Type	4 in-lb Output Torque, #10-32 UNF
Rotation Angle	90°
Manufacturer Part Number	NCDRB1BW15-90S
