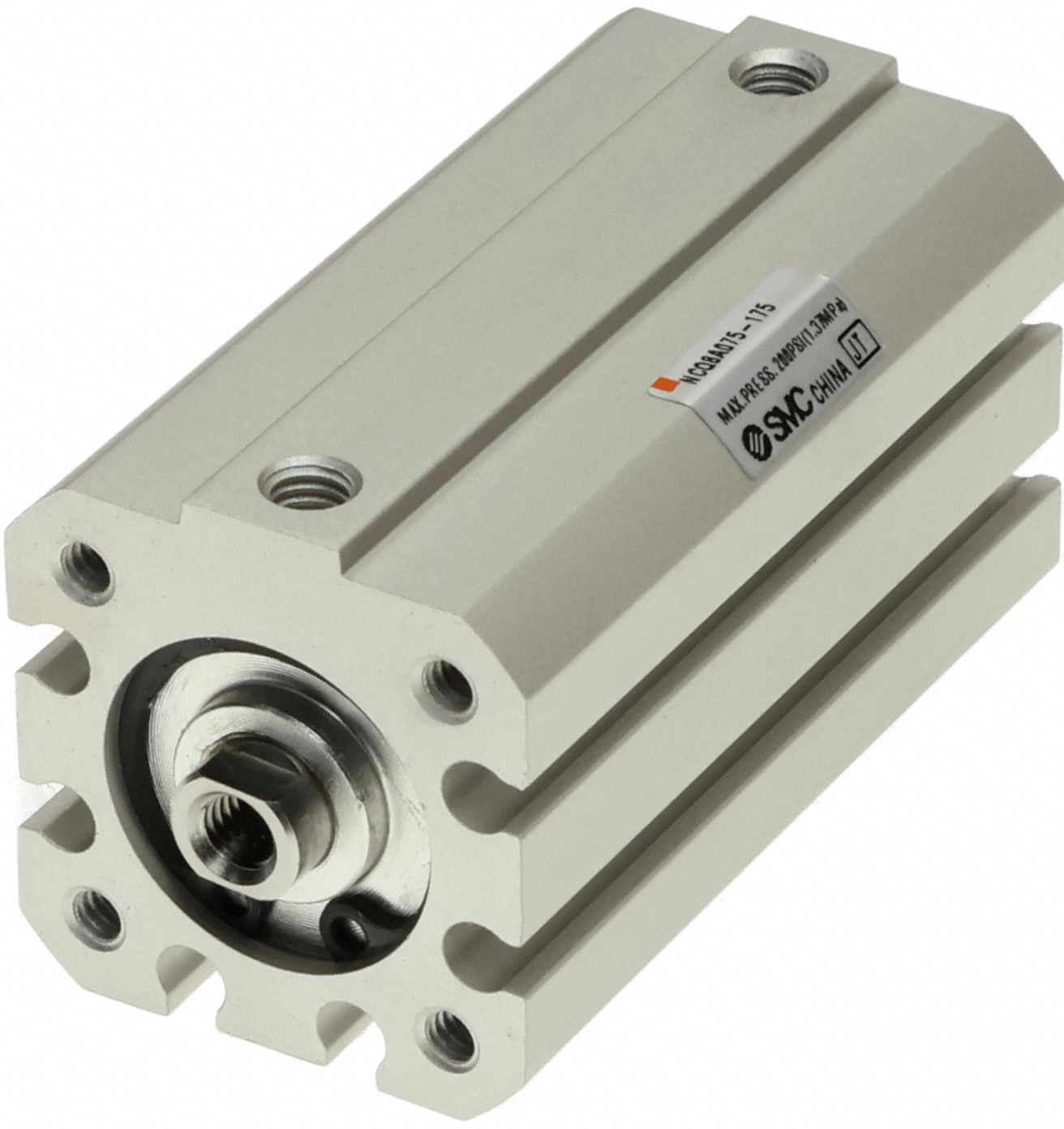

Smc 3G-OTH-189366 — Technical Specifications

Name: Smc 3G-OTH-189366 SMC Compact Cylinder: 9/16 in Bore Dia, 3 in Stroke Lg, Tapped Hole Mounting, Aluminum, #10-32 UNF (MPN NCQ8A056-300). Key specifications — attr946022: Tapped Hole; attr946024: Single Rod; attr946038: NCQ8; attr1123057: Rotating Rod; attr945997: SMC.
Brand: Smc

The SMC NCQ8A056-300 is a basic mount compact cylinder from the NCQ8 series, featuring a 9/16 in bore diameter and a 3 in stroke length. This single-rod, rotating-rod cylinder is constructed with aluminum and utilizes a tapped hole mounting style with #10-32 UNF port threads.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Tapped Hole Mounting, Aluminum, #10-32 UNF
Stroke Lg	3 in
Manufacturer Part Number	NCQ8A056-300
