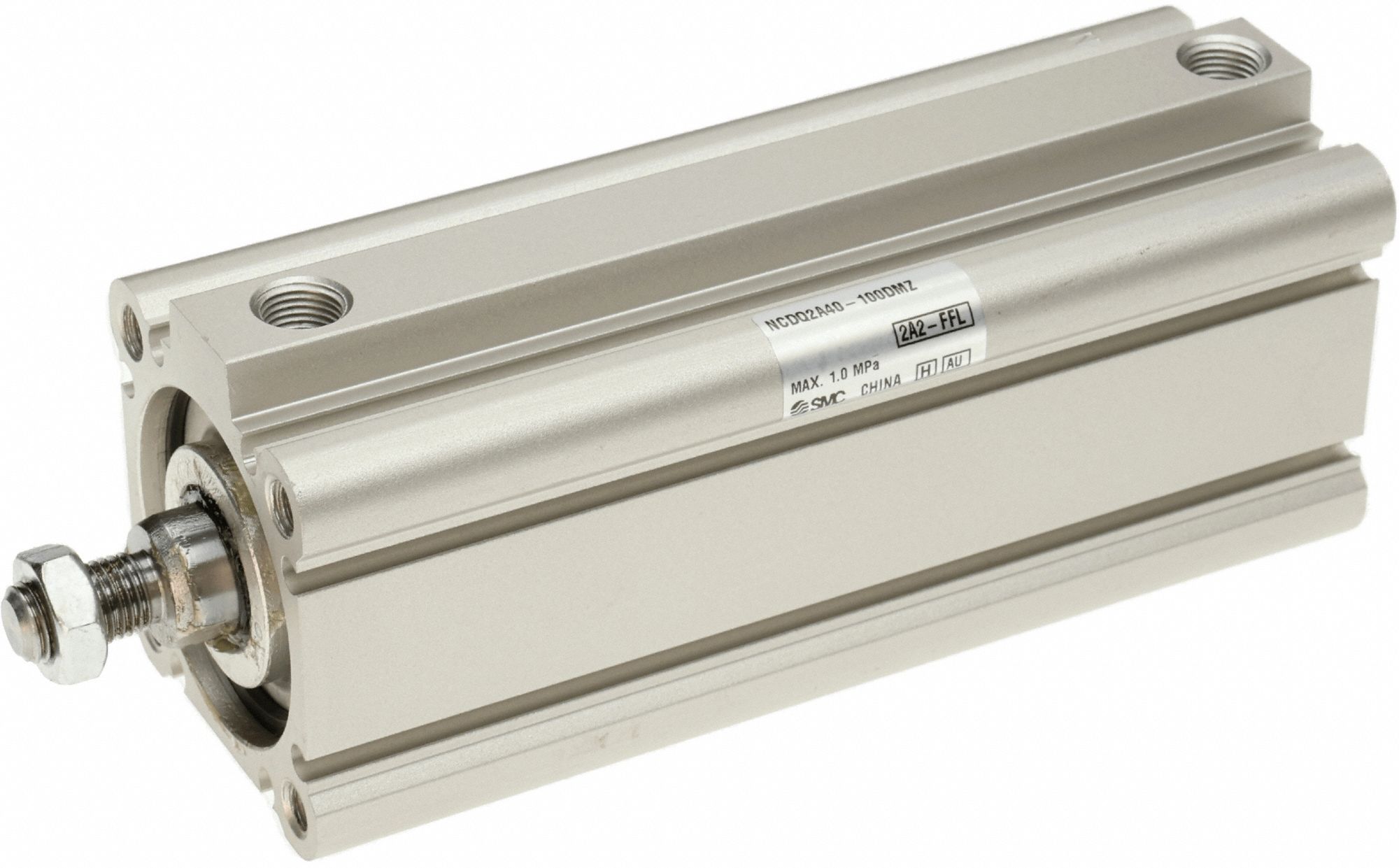

Smc 3G-OTH-189369 — Technical Specifications

Name: Smc 3G-OTH-189369 SMC Compact Cylinder: 40 mm Bore Dia, 50 mm Stroke Lg, Tapped Hole Mounting, Aluminum, 1/8 in NPT (MPN NCQ2A40-50DMZ). Key specifications — attr946022: Tapped Hole; attr946024: Single Rod; attr946038: NCQ2; attr1123057: Rotating Rod; attr945997: SMC.
Brand: Smc

The SMC NCQ2A40-50DMZ is a basic mount compact cylinder from the NCQ2 series, featuring a 40 mm bore diameter and 50 mm stroke length. It has a tapped hole mounting style, single rod configuration, and a rotating rod design. The cylinder body is aluminum, and the port size is 1/8 in NPT.

View Product & Quote

Technical Specifications

Parameter	Value
NPT	1/8 in
Type	Tapped Hole Mounting, Aluminum
Stroke Lg	50 mm
Manufacturer Part Number	NCQ2A40-50DMZ
