Smc 3G-OTH-189357 — Technical Specifications

Name: Smc 3G-OTH-189357 SMC Compact Cylinder: 20 mm Bore Dia, 10 mm Stroke Lg, Tapped Hole Mounting, Aluminum, M5 x 0.8, Air (MPN NCQ2A20-10D). Key specifications — attr946022: Tapped Hole; attr946024: Single Rod; attr946038: NCQ2; attr1123057: Rotating Rod; attr945997: SMC.
Brand: Smc

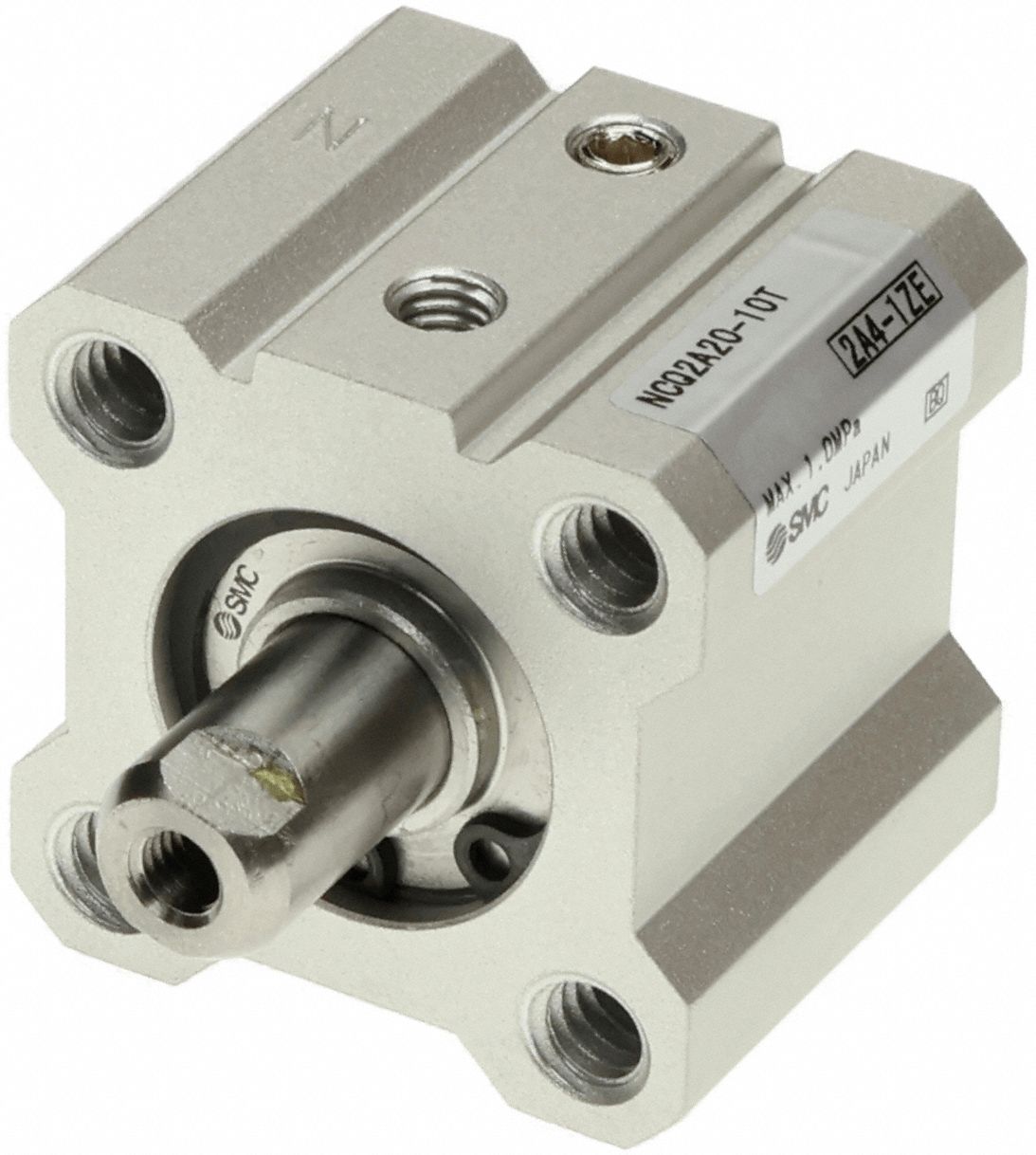

The SMC NCQ2 Compact Cylinder (SKU 826FZ8) is a basic mount, single-rod, rotating-rod pneumatic cylinder with a 20 mm bore diameter and 10 mm stroke length. It features tapped hole mounting, an aluminum body, and an M5 x 0.8 port size, designed for air service. This model (MPN NCQ2A20-10D) is part of SMC's NCQ2 series of compact cylinders.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Tapped Hole Mounting, Aluminum, M5 x 0.8, Air
Stroke Lg	10 mm
Manufacturer Part Number	NCQ2A20-10D
